A4VG71HWD1/40R-PSC10F002S (R909600201)

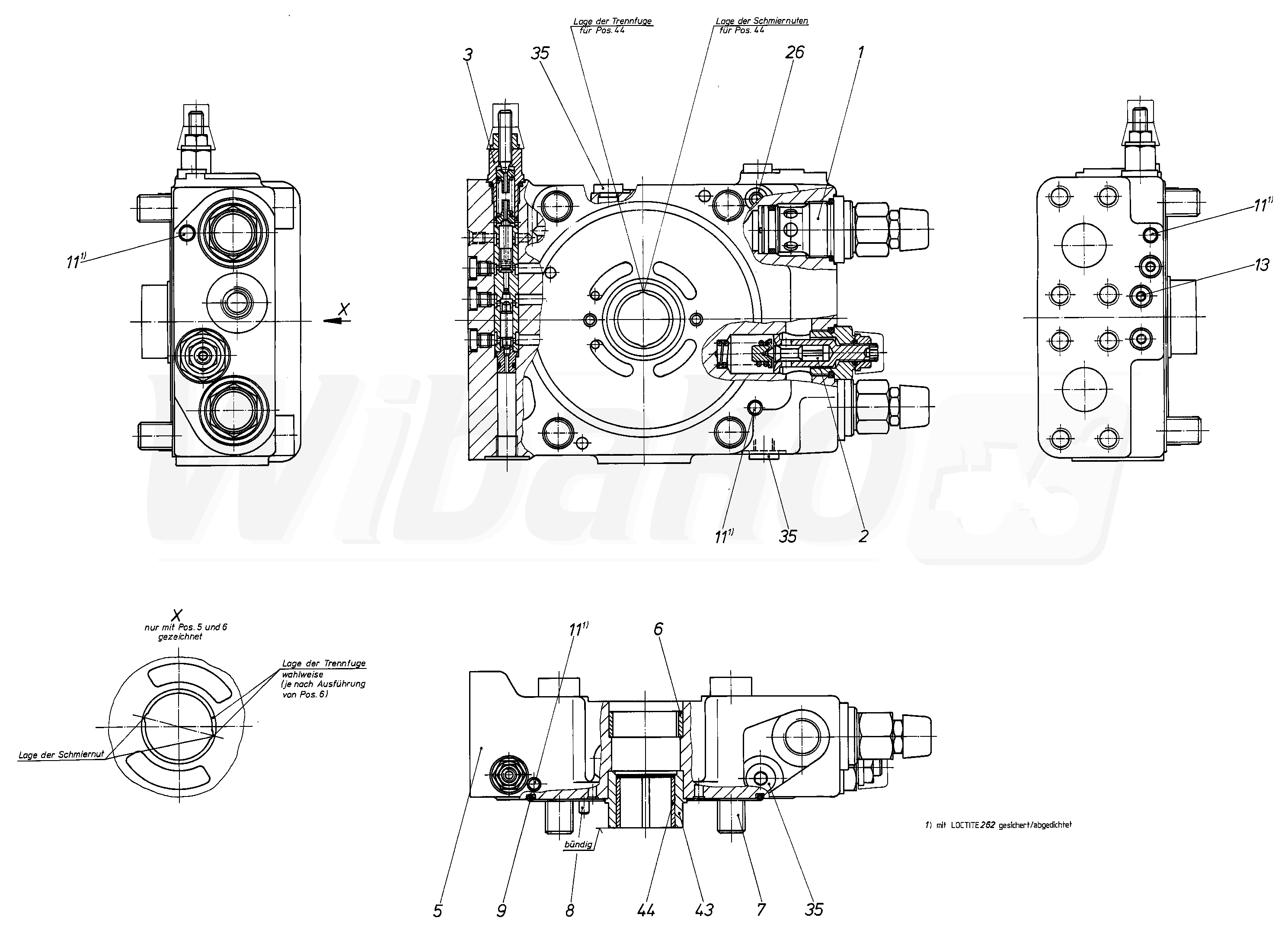

CONNECTION PLATE (43365)

CONNECTION PLATE
(43365)


1

DELIVERY-VALVE ASSEMBLY
(10452)

Group »


2

PRESSURE RELIEF VALVE
(14378)

Group »


3

PRESSURE CUT-OFF VALVE
(10666)

Group »


5

CONNECTION PLATE
(43435)


6

BUSHING
(19095)


7

SOCKET HEAD CAP SCREW
(43436)


8

STRAIGHT PIN
(11416)


9

SEAL RING
(43437)


11

DOUBLE BREAK-OFF PLUG
(18990)


13

SCREW PLUG
(10330)


26

SEAL RING
(43438)


35

SCREW PLUG
(10190)


43

BUSHING
(10669)


44

BUSHING
(19115)



Return
