AA4VG40DA1D4/31R-PSC52F005S-S (R909600458)

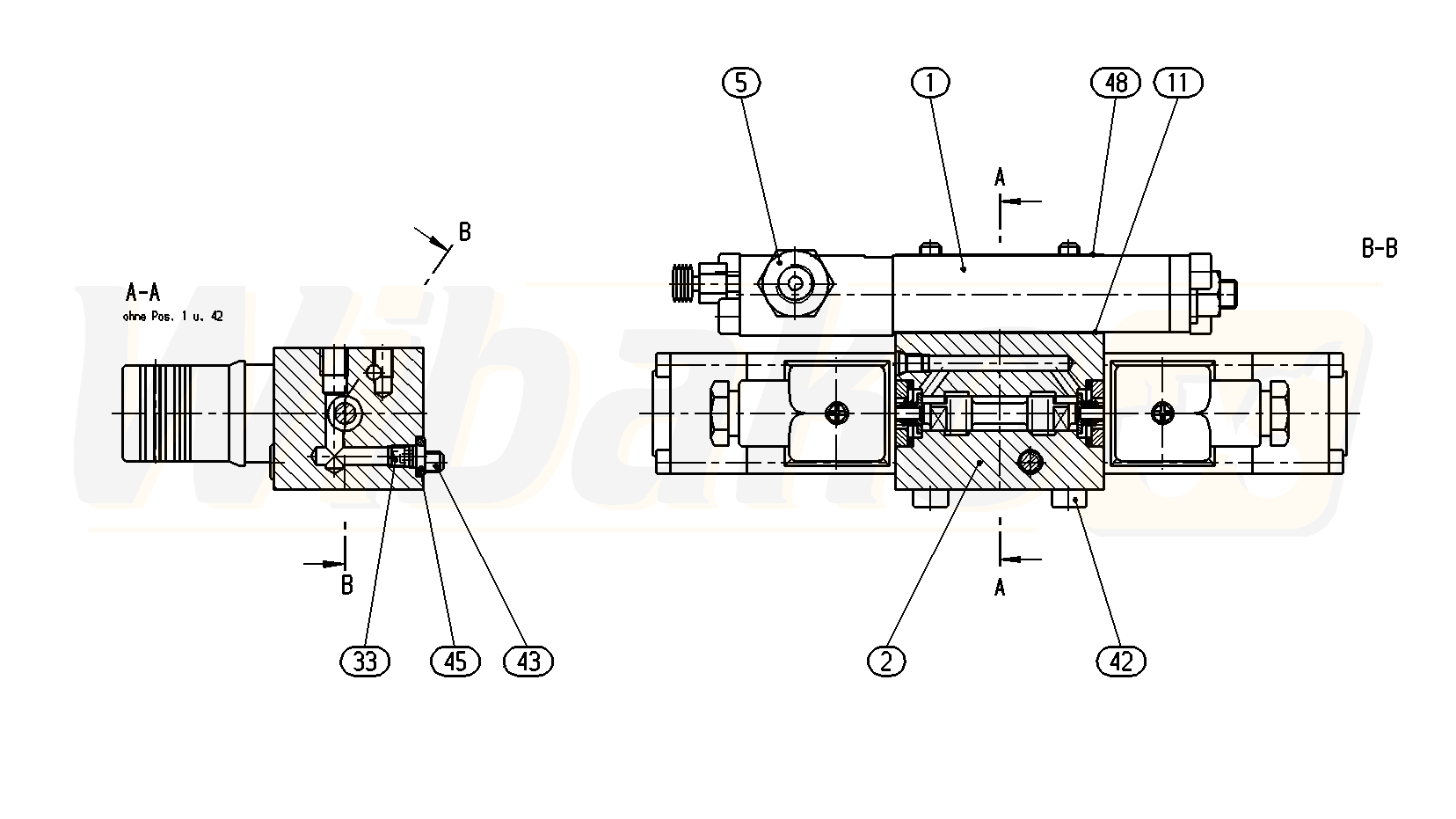

INCHING VALVE (43377)

INCHING VALVE
(43377)


1

INCHING DEVICE
(10900)

Group »


2

DIRECTIONAL-CONTROL VALVE
(43102)

Group »


5

THREADED REDUCING STUD
(40614)


11

SEAL
(10902)


33

NOZZLE
(10619)


42

SOCKET HEAD CAP SCREW
(10785)


43

SOCKET HEAD CAP SCREW
(10904)


45

O-RING
(12860)


48

SEAL
(10783)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
