A2 A10V O 28 DFSR/31R-PSC62K01 -SO340 (R910939549)

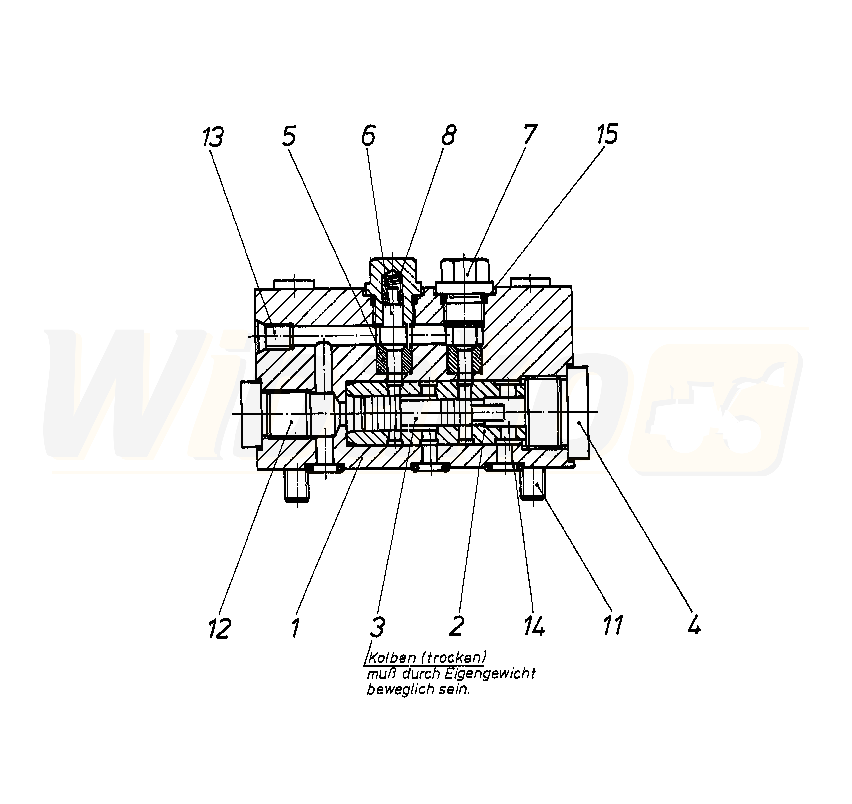

PRESSURE REGULATOR (206078)

PRESSURE REGULATOR
(206078)


1

HOUSING
(206083)


2

CONTROL SLEEVE
(12457)


3

CONTROL PISTON
(12458)


4

SCREW PLUG
(12459)


5

BUSHING
(10367)


6

VALVE CONE
(12018)


7

SCREW PLUG
(12019)


8

COMPRESSION SPRING
(12020)


11

SOCKET HEAD CAP SCREW
(10505)


12

SCREW PLUG
(10190)


13

DOUBLE BREAK-OFF PLUG
(18990)


14

O-RING
(10370)


15

O-RING
(11087)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
