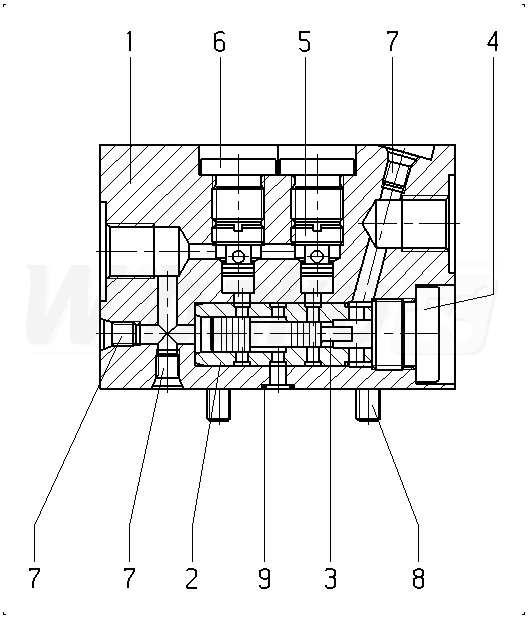

A2 A10V O 45 DFSR/31R-VSC12N00 -SO416 (R910961581)
DIAPHRAGM SEAL (18975)

DIAPHRAGM SEAL
(18975)


1

HOUSING
(206092)


2

CONTROL SLEEVE
(12457)


3

CONTROL PISTON
(12458)


4

SCREW PLUG
(12459)


5

CHECK VALVE
(206093)


6

SCREW PLUG
(17849)


7

DOUBLE BREAK-OFF PLUG
(18990)


8

SOCKET HEAD CAP SCREW
(148102)


9

O-RING
(18405)
