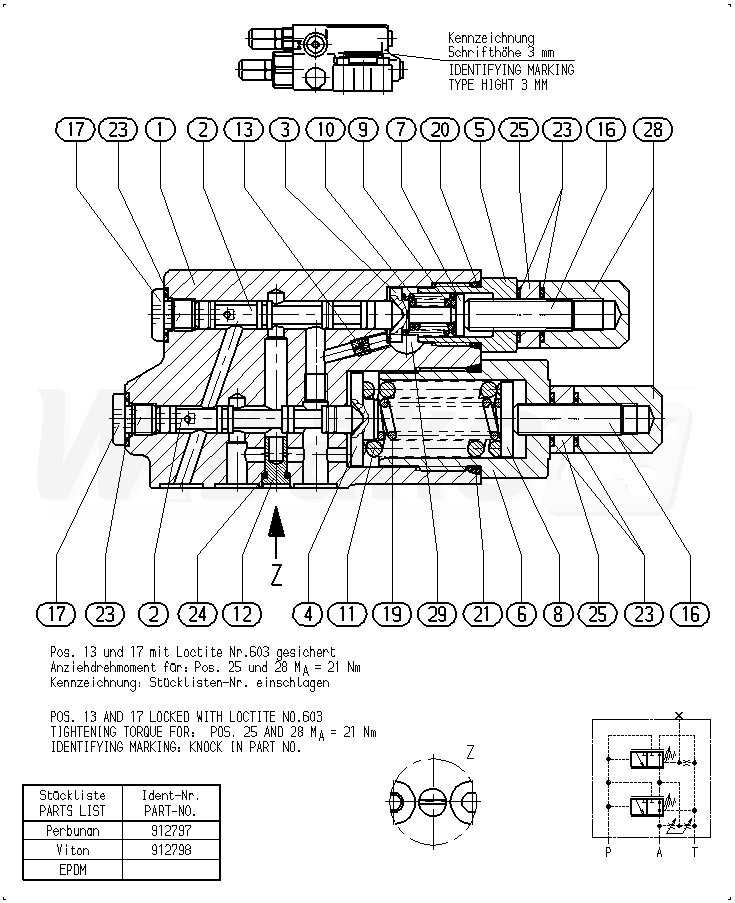

AE A10VSO 18 DR /31R-PSC12O60 -S1404 (R902428110)
CONTROL VALVE (208821)

CONTROL VALVE
(208821)


1

VALVE HOUSING
(115164)


2

VALVE SPOOL
(13250)


3

SPRING DISK
(11910)


4

SPRING DISK
(54701)


5

SCREW PLUG
(54702)


6

SCREW PLUG
(109116)


7

WASHER
(11913)


8

WASHER
(109117)


9

COMPRESSION SPRING
(11914)


10

COMPRESSION SPRING
(11915)


11

COMPRESSION SPRING
(13249)


12

ORIFICE
(46696)


13

NOZZLE
(14546)


16

SETSCREW
(54704)


17

SCREW PLUG
(11918)


19

COMPRESSION SPRING
(13251)


20

O-RING
(13992)


21

O-RING
(13993)


23

BONDED SEAL RING
(13991)


24

O-RING
(109118)


25

NUT
(14286)


28

CAP NUT
(14287)


29

SCREW PLUG
(11371)



Return
