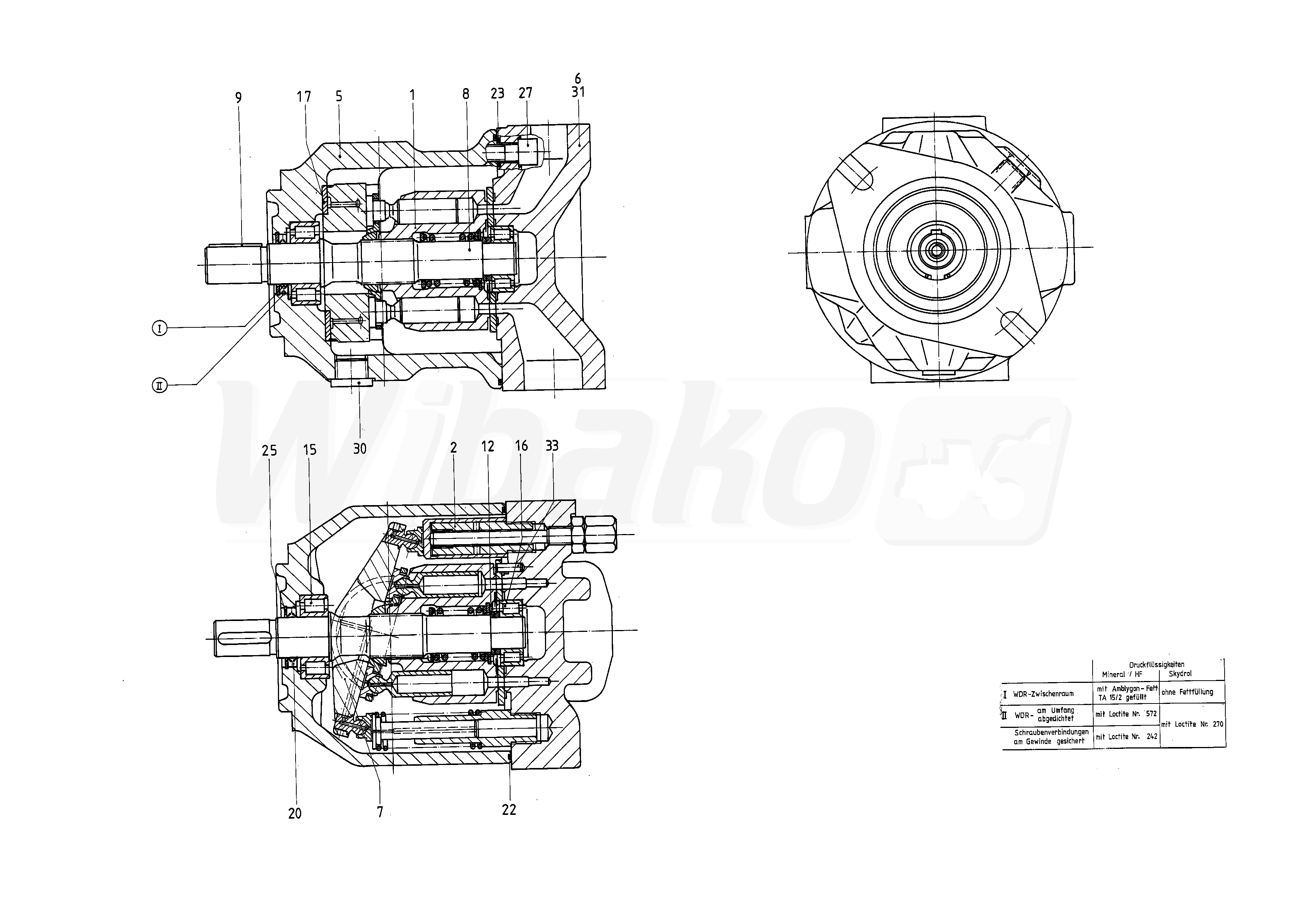

AEAA10VSO 45 DFR /31L-VKC62N00 (R902401303)
BASE UNIT (160505)

BASE UNIT
(160505)


1

ROTARY GROUP
(15743)

Group »


2

ADJUSTING PIECE
(29040)

Group »


5

PUMP HOUSING
(20079)


6

CONNECTION PLATE
(160506)


7

SWASH PLATE
(20081)


8

DRIVE SHAFT
(110731)


9

PARALLEL KEY
(110579)


12

ADJUSTMENT SHIM
(13222)


15

CYL. ROLLER BEARING
(146518)


16

CYL. ROLLER BEARING
(146519)


17

BEARING SHELL
(13225)


20

SHAFT SEALING RING
(111045)


22

O-RING
(13227)


23

R-RING
(26868)


25

RETAINING RING
(13229)


27

SOCKET HEAD CAP SCREW
(13230)


28

SCREW PLUG
(11681)


30

SCREW PLUG
(13231)


31

DOUBLE BREAK-OFF PLUG
(18990)


33

STRAIGHT PIN
(11892)
