AH A10V O140 DFR1/31L-VQC13KC3 -S1823 (R902435195)

Axial piston variable pump A10V, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. High-speed version. Geometric displacement 140 cm3. Pressure controller with flow controller, hydraulic, X-T plugged with flushing function. Sealing material: FKM (fluoroelastomer).
1

BASE UNIT
(159017)

Group »


2

CONTROL VALVE
(35999)

Group »


3

CONTROL VALVE
(36001)

Group »


5

ASSEMBLY KIT
(20567)


6

SOCKET HEAD CAP SCREW
(15901)


7

SEALING COVER
(60221)

Group »


8

ADAPTER
(30933)

Group »


9

FLANGE COVER
(19927)


13

SIDE MARKER RING
(121766)


14

SCREW PLUG
(10015)


17

EQUIPMENT SOCKET
(20568)



Return

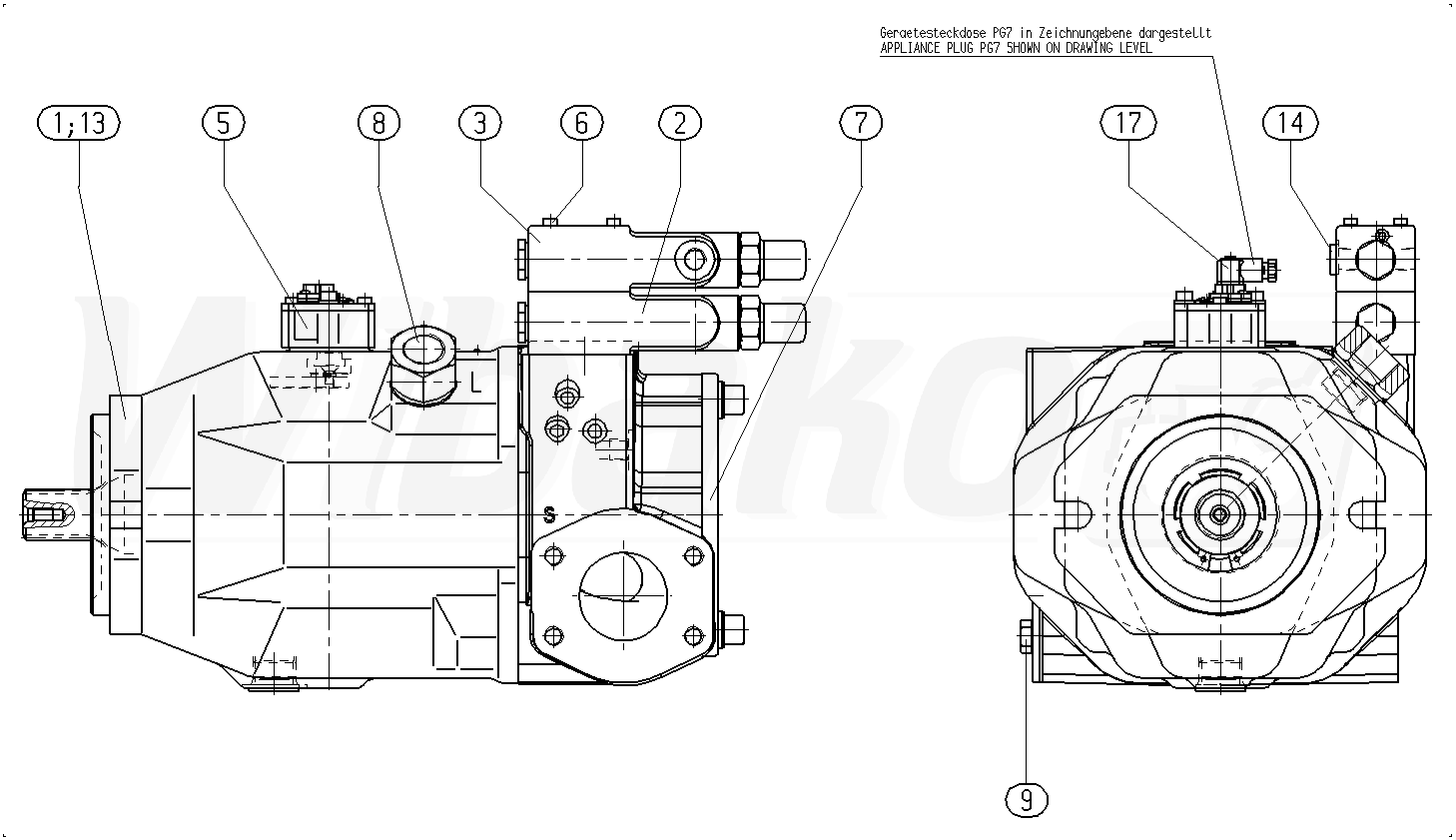

The above diagrams belong to Rexroth www.boschrexroth.com
