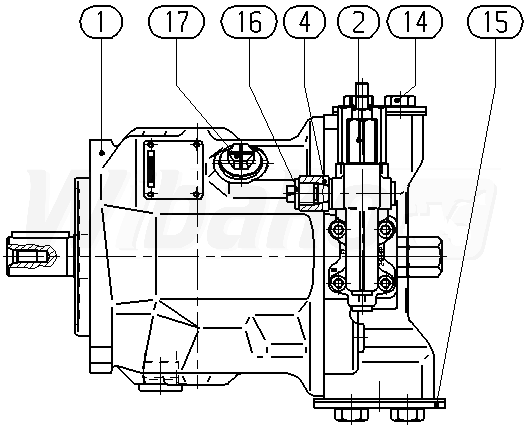

AL A10VSO100 DRG /31R-VPA12N00 (R902481016)

Axial piston variable pump A10VS, swashplate design, open circuit, nominal pressure 280 bar, maximum pressure 350 bar. Series 31. Geometric displacement 100 cm3. Pressure controller with pressure cut-of, hydraulic, remote controlledSealing material: FKM (fluoroelastomer). DEUTSCH - molded connector, 2-pin, without suppressor diode.
1

BASE UNIT
(131548)

Group »


2

CONTROL VALVE
(15470)

Group »


4

ADAPTER
(15471)

Group »


14

FLANGE COVER
(15525)


15

FLANGE COVER
(19927)


16

SEAL SCREW
(15631)


17

SEAL SCREW
(15757)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
