AAA6VM250HA2T/63W1-PSD520A-SO97 (R910969104)

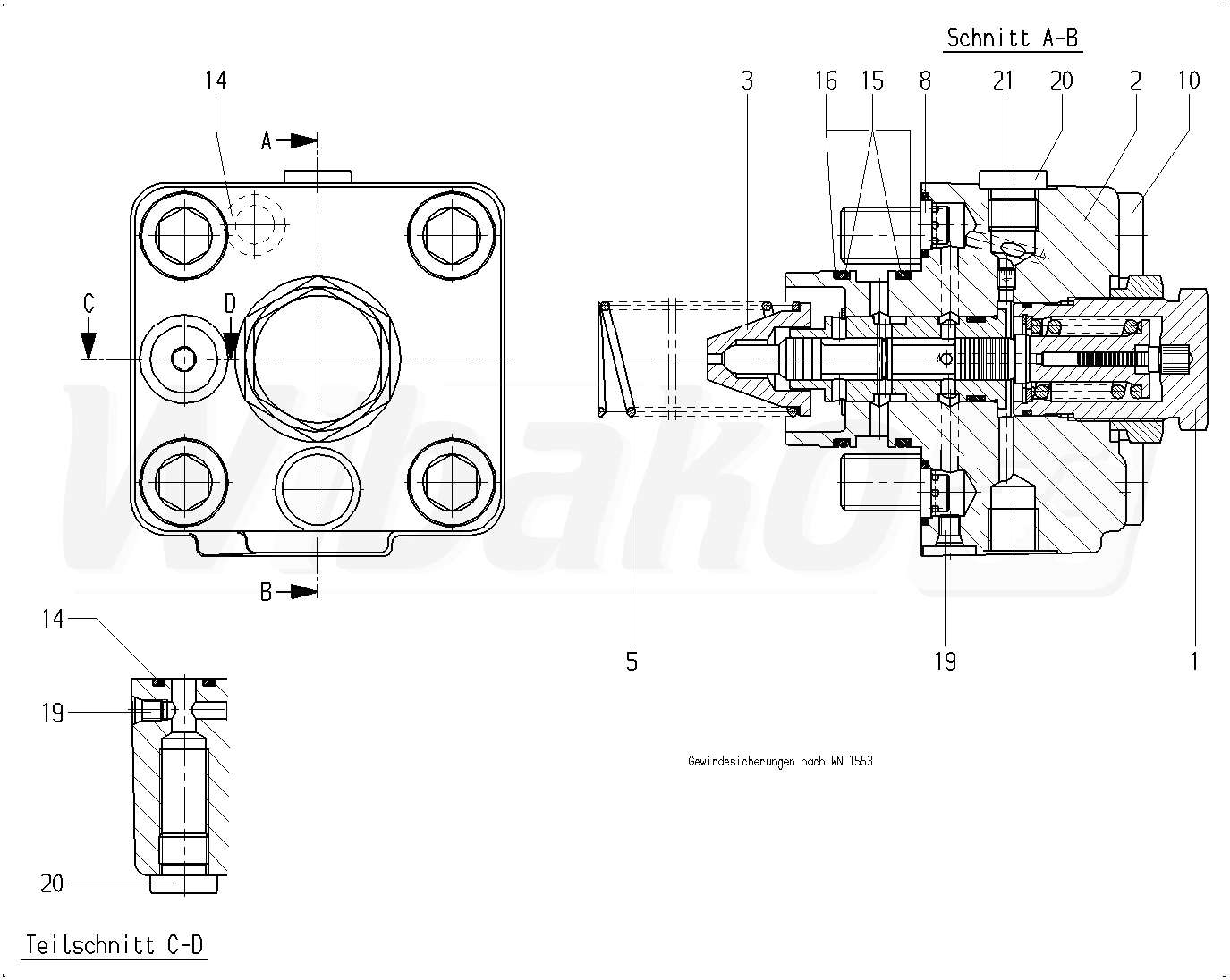

CONTROL PART (192408)

CONTROL PART
(192408)


1

VALVE INSERT
(192406)


2

CONTROL HOUSING
(192409)


3

SPRING DISK
(166344)


5

COMPRESSION SPRING
(166345)


8

HY-CHECK VALVE
(14266)


10

SOCKET HEAD CAP SCREW
(14267)


13

O-RING
(15405)


14

O-RING
(10095)


15

O-RING
(162663)


16

BACKUP RING
(14271)


19

DOUBLE BREAK-OFF PLUG
(18990)


20

SCREW PLUG
(11370)


21

SETSCREW
(55167)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
