AA11VO95LG2S/10+AA4VG40DWD/32 (R909607265)

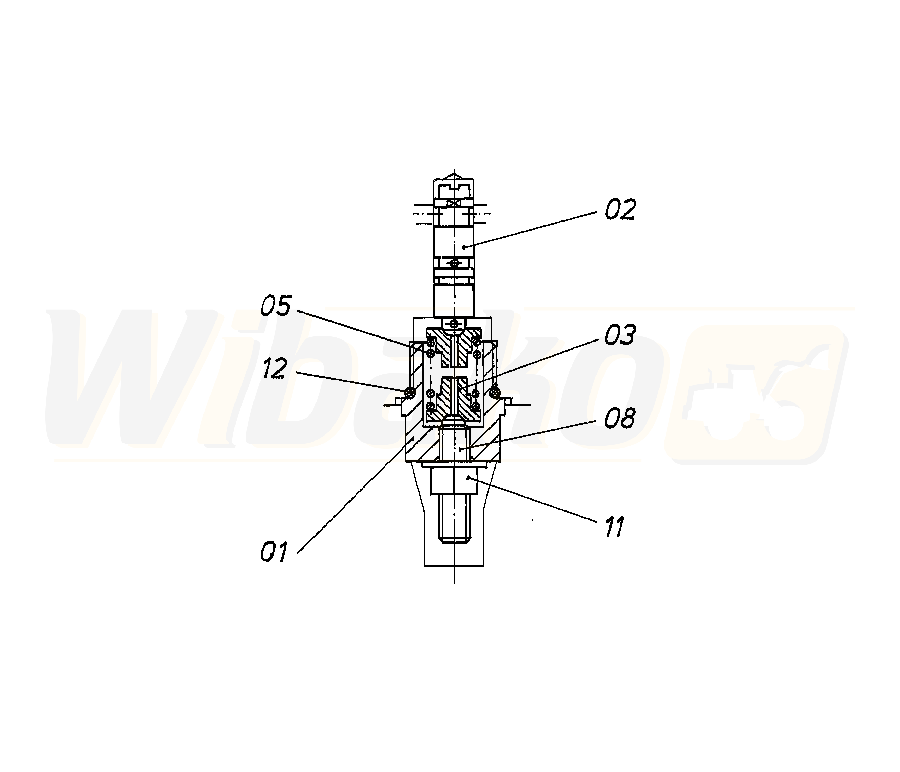

UNLOADING VALVE (17203)

UNLOADING VALVE
(17203)


1

SCREW PLUG
(12091)


2

CONTROL PISTON
(17209)


3

SPRING BOLT
(12186)


5

COMPRESSION SPRING
(17210)


8

SETSCREW
(12097)


11

SEALING NUT
(10215)


12

O-RING
(10214)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
