A4VG125DE1D1/32R-NZF02F071FH-S (R902079710)

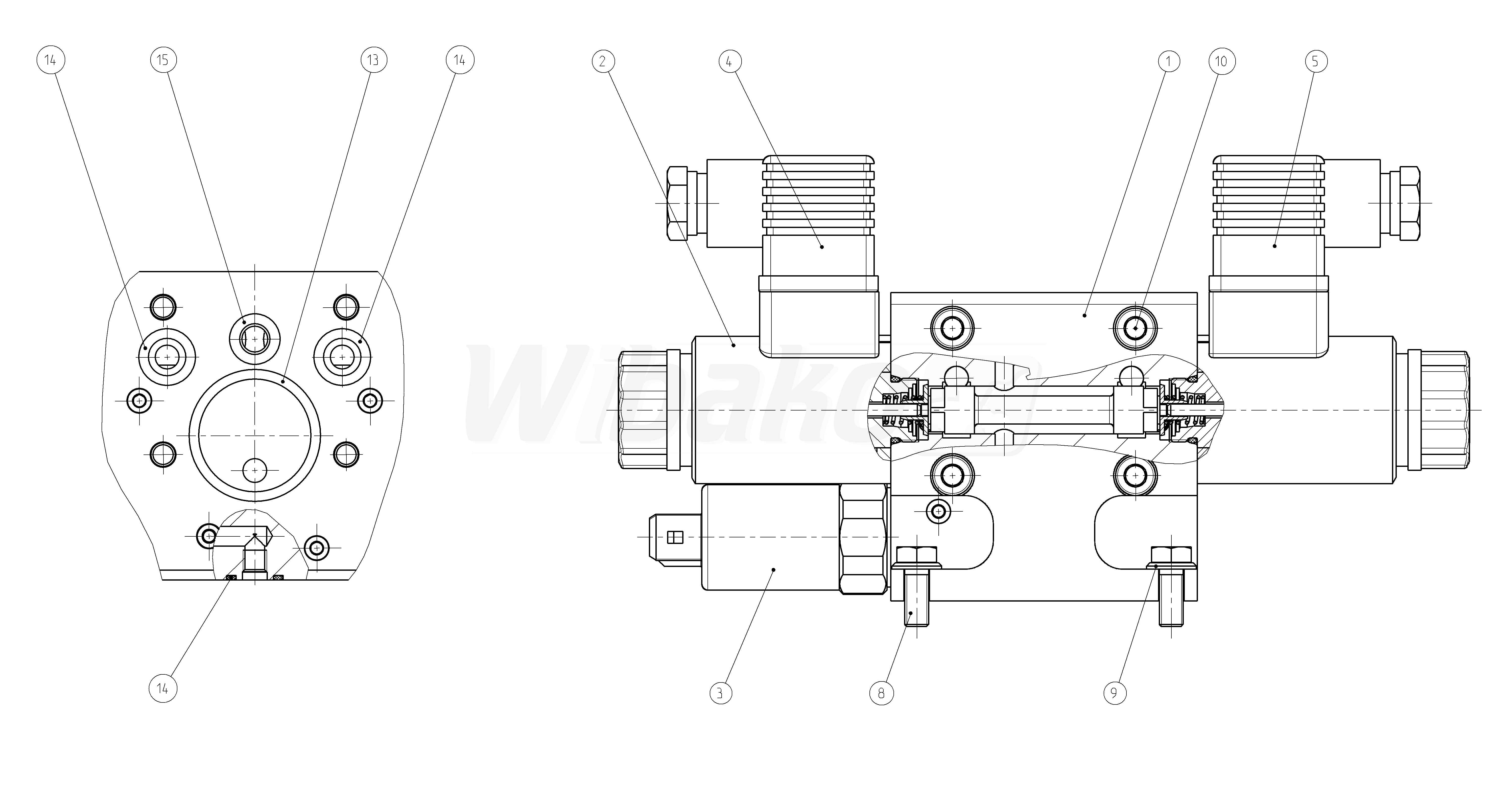

DIRECTIONAL-CONTROL VALVE (44495)

DIRECTIONAL-CONTROL VALVE
(44495)


1

VALVE HOUSING
(44496)

Group »


2

SWITCHING SOLENOID
(12480)


3

PRESSURE REDUCING VALVE
(23312)


4

PLUG-IN CONNECTOR
(10519)


5

PLUG-IN CONNECTOR
(10518)


8

HEXAGON SCREW
(13334)


9

WASHER
(32611)


10

SOCKET HEAD CAP SCREW
(10507)


13

O-RING
(10508)


14

O-RING
(10512)


15

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
