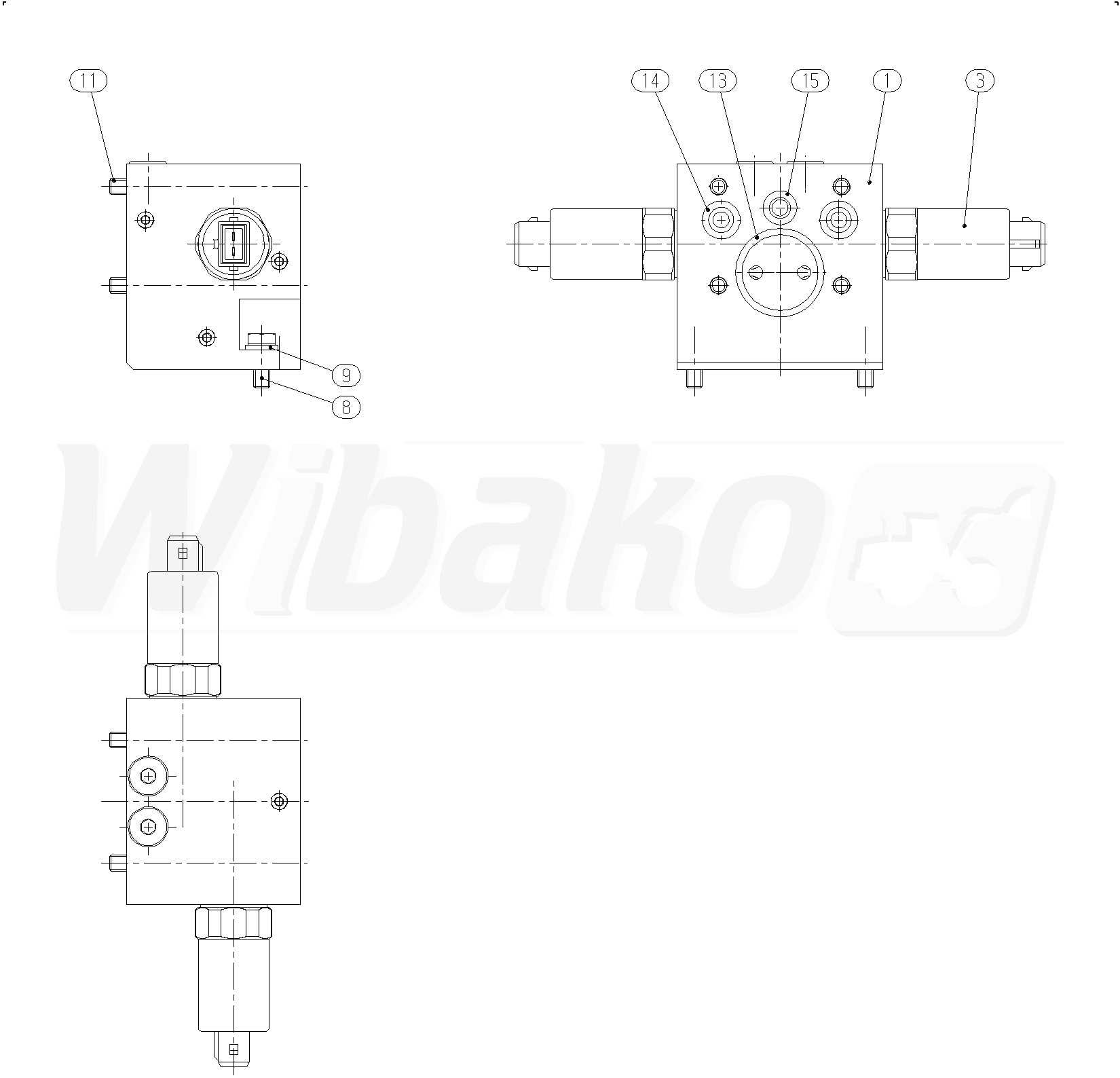

A4VG125DE4DT1/32R-VSF02F023FRH-S (R902089233)
CONTROL UNIT (44506)

CONTROL UNIT
(44506)


1

VALVE HOUSING
(44507)

Group »


3

PRESSURE REDUCING VALVE
(11170)


8

HEXAGON SCREW
(13334)


9

WASHER
(32611)


11

SOCKET HEAD CAP SCREW
(12219)


13

O-RING
(17022)


14

O-RING
(17023)


15

O-RING
(15064)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
