A4VG125DG/32+A4VG125DG/32 (R902102056)

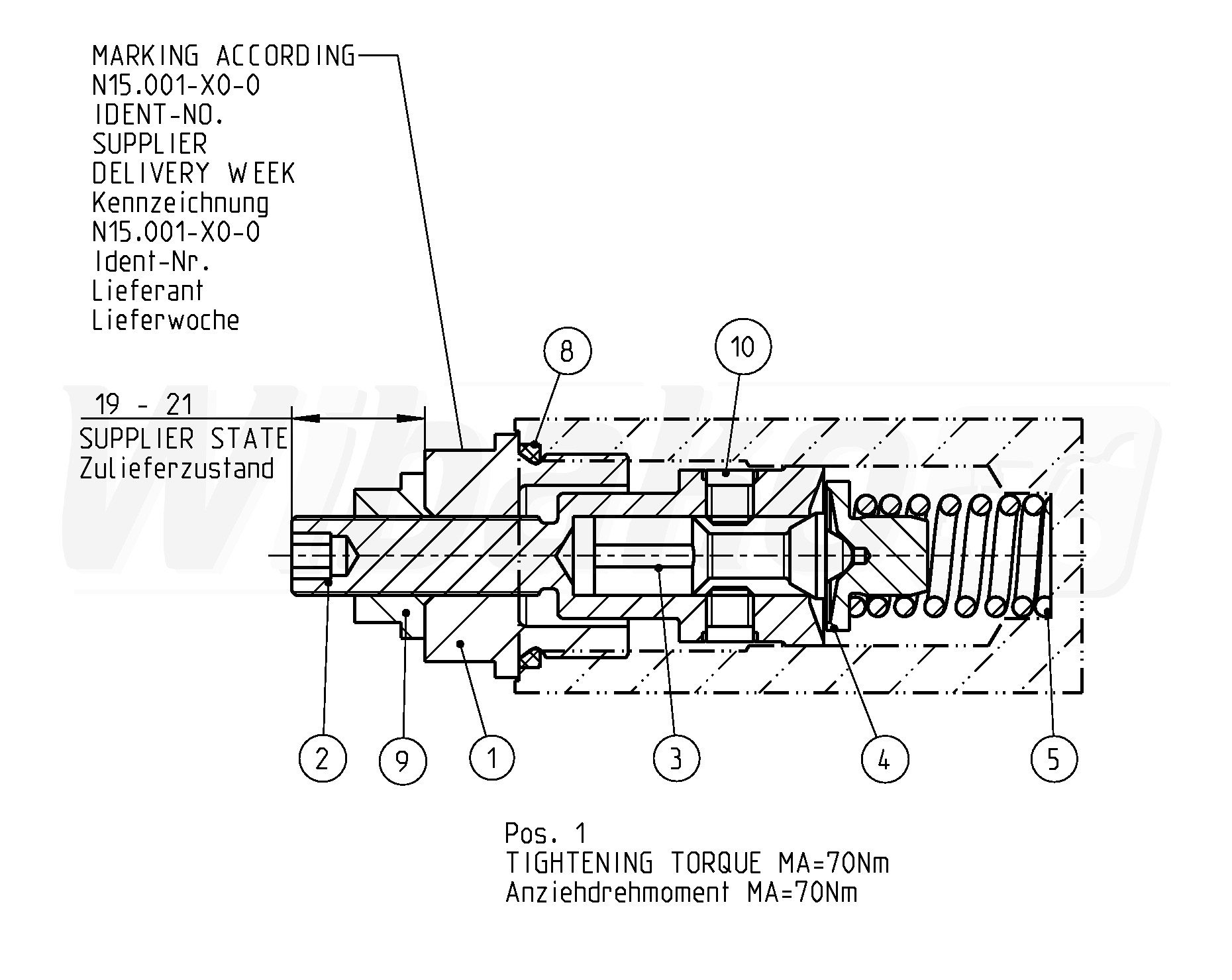

PRESSURE RELIEF VALVE (44530)

PRESSURE RELIEF VALVE
(44530)


1

SCREW PLUG
(14380)


2

ADJUSTING SCREW
(44590)


3

VALVE SPOOL
(10467)


4

SPRING DISK
(10468)


5

COMPRESSION SPRING
(10469)


8

O-RING
(10470)


9

SEALING NUT
(10815)


10

NOZZLE
(14404)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
