A4VG125DA2DM2/32R-NSF02F071DC-S (R902103916)

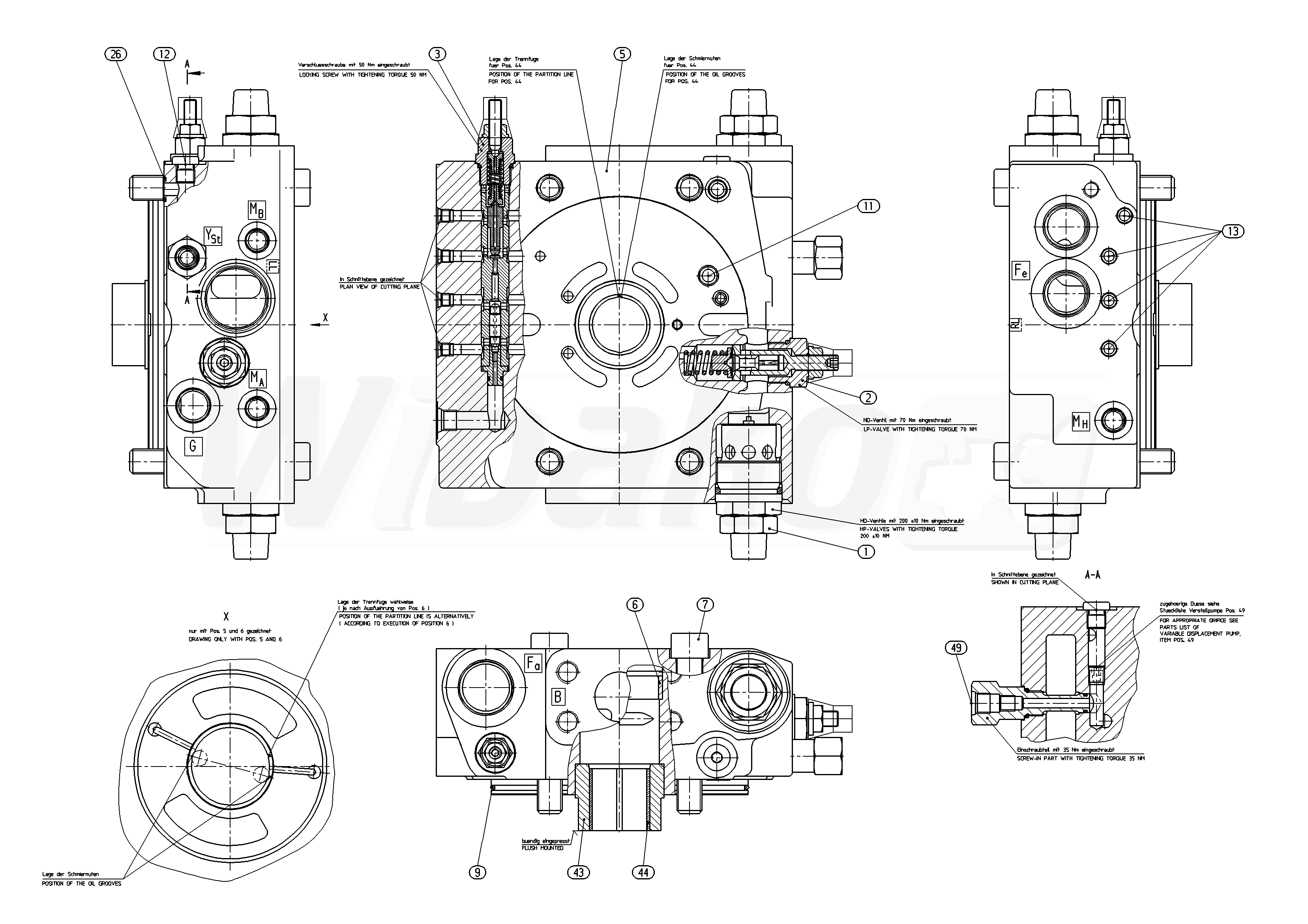

CONNECTION PLATE (44539)

CONNECTION PLATE
(44539)


1

DELIVERY-VALVE ASSEMBLY
(16305)

Group »


2

PRESSURE RELIEF VALVE
(14378)

Group »


3

PRESSURE CUT-OFF VALVE
(11144)

Group »


5

CONNECTION PLATE
(44592)


6

BUSHING
(19247)


7

SOCKET HEAD CAP SCREW
(11147)


9

O-RING
(11148)


11

DOUBLE BREAK-OFF PLUG
(19010)


12

SCREW PLUG
(10190)


13

DOUBLE BREAK-OFF PLUG
(19009)


26

O-RING
(10450)


43

BUSHING
(11149)


44

BUSHING
(19248)


49

THREADED PART
(16308)

Group »


98

SEAL KIT
(11151)
