A4VG125DE2DM1/32R-NSD02F001DP-S (R902118365)

Axial piston variable pump A4VG. Geometric displacement 125 cm3. Pressure cut-off. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for single pump. Filtration in the boost pump pressure line. Ports for external boost circuit filtration (Fe and Fa).
1

ROTARY GROUP
(15517)

Group »


2

CONTROL
(44572)

Group »


3

CONNECTION PLATE
(11095)

Group »


4

INTERNAL GEAR PUMP
(11096)

Group »


5

DIRECTIONAL-CONTROL VALVE
(44546)

Group »


10

HOUSING
(44596)


13

PIVOT PIN
(11100)


20

SCREW PLUG
(11007)


22

SCREW PLUG
(10395)


24

SCREW PLUG
(13330)


25

O-RING
(11174)


26

SCREW PLUG
(11753)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10190)


33

SCREW PLUG
(11007)


35

SCREW PLUG
(10220)


37

SCREW PLUG
(13379)


41

THREADED REDUCING STUD
(32629)


46

ECCENTRIC SCREW
(44597)


47

SEALING NUT
(10399)


48

SCREW PLUG
(10397)


49

PLUG
(16307)


68

NOZZLE
(12443)



Return

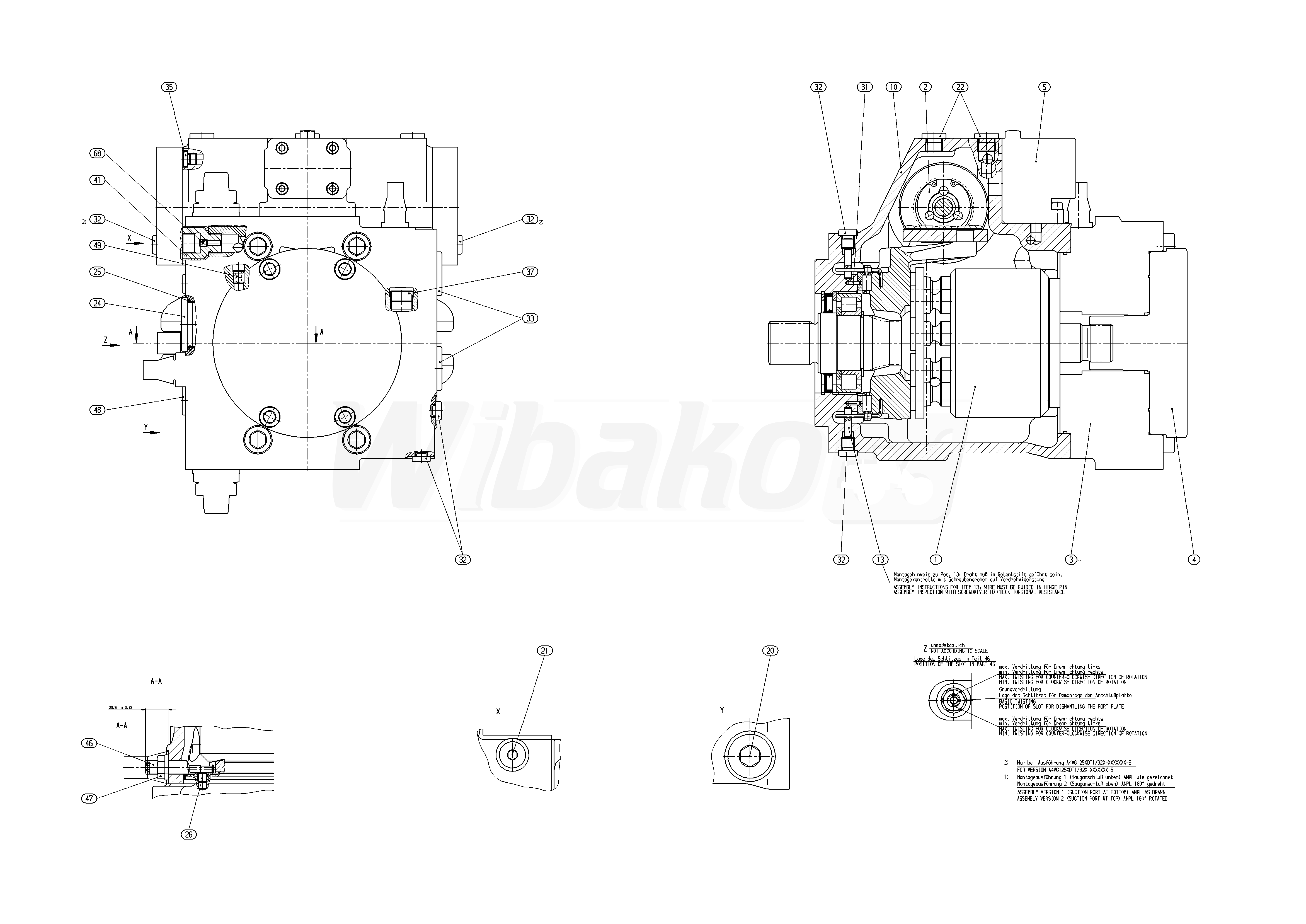

The above diagrams belong to Rexroth www.boschrexroth.com
