A4VG125DE2D1/32R-NZF02F001BP-S (R902193485)

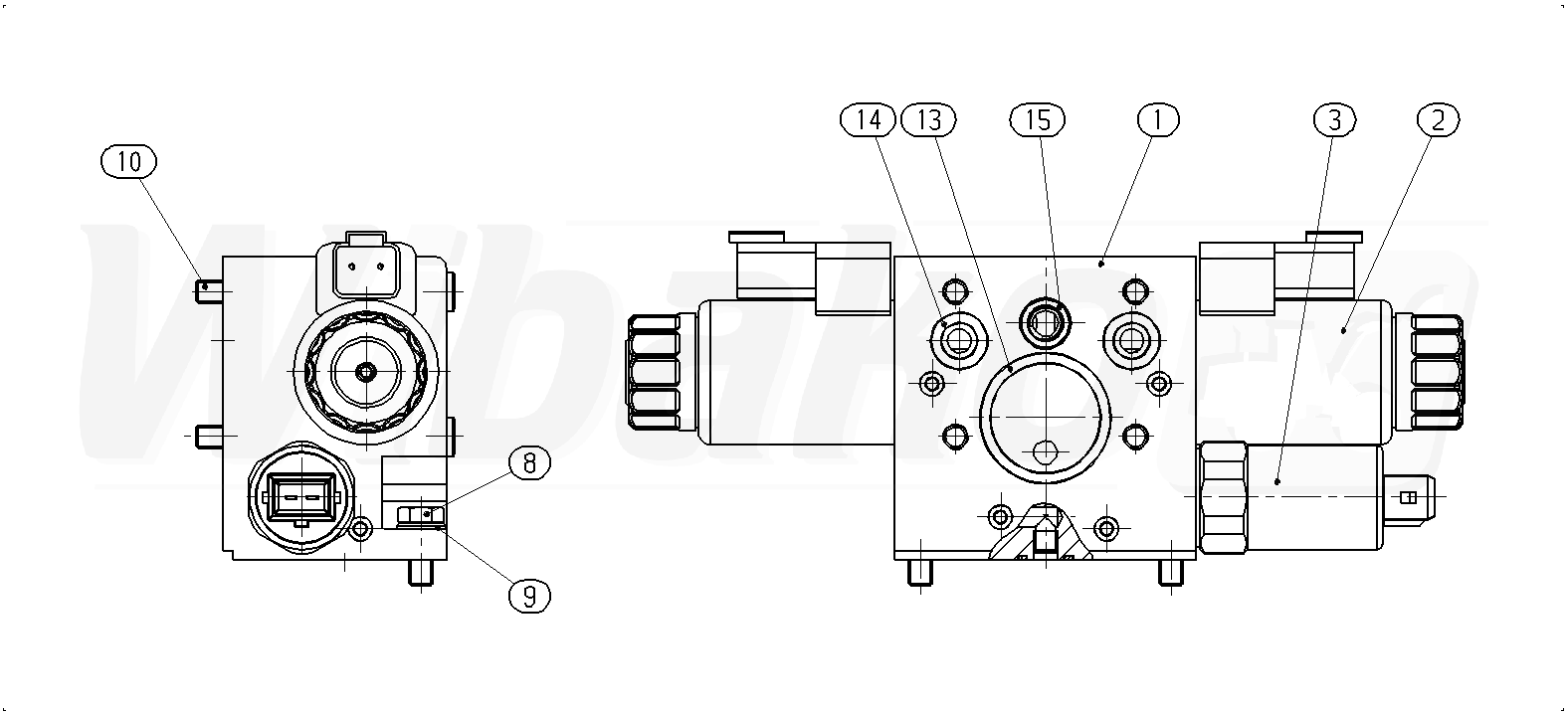

CONTROL VALVE (44569)

CONTROL VALVE
(44569)


1

CONTROL VALVE
(44570)

Group »


2

SWITCHING SOLENOID
(11168)


3

PRESSURE REDUCING VALVE
(11170)


8

HEXAGON SCREW
(13334)


9

WASHER
(32611)


10

SOCKET HEAD CAP SCREW
(10507)


13

O-RING
(10508)


14

O-RING
(10512)


15

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
