A4VG125DA2D8/32R-NZF02F021SH-S (R902208945)

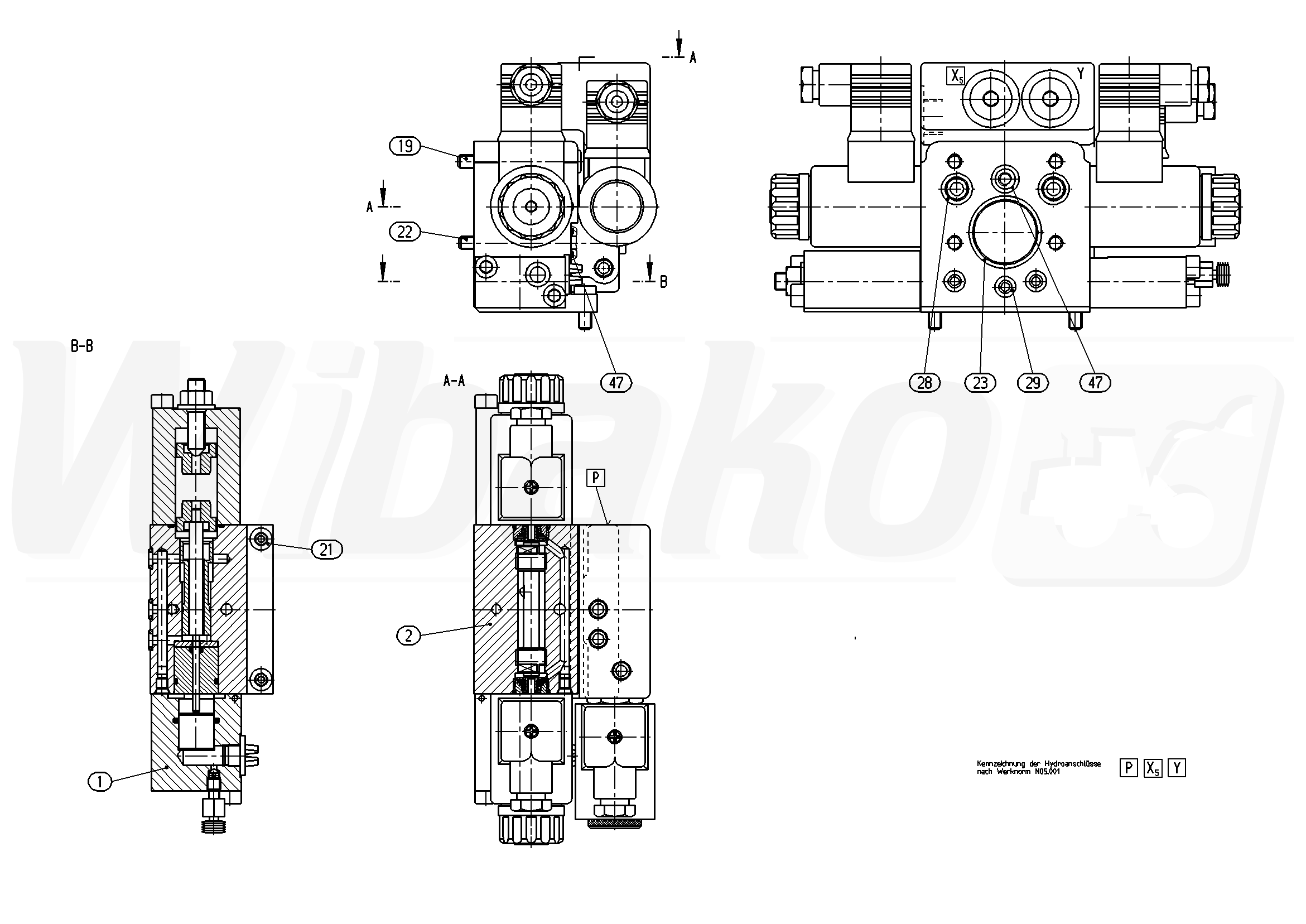

INCHING VALVE (44542)

INCHING VALVE
(44542)


1

INCHING DEVICE
(12916)

Group »


2

DIRECTIONAL-CONTROL VALVE
(44543)

Group »


19

SOCKET HEAD CAP SCREW
(12809)


21

SOCKET HEAD CAP SCREW
(13198)


22

SOCKET HEAD CAP SCREW
(10785)


23

O-RING
(10508)


28

O-RING
(10512)


29

O-RING
(10370)


47

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
