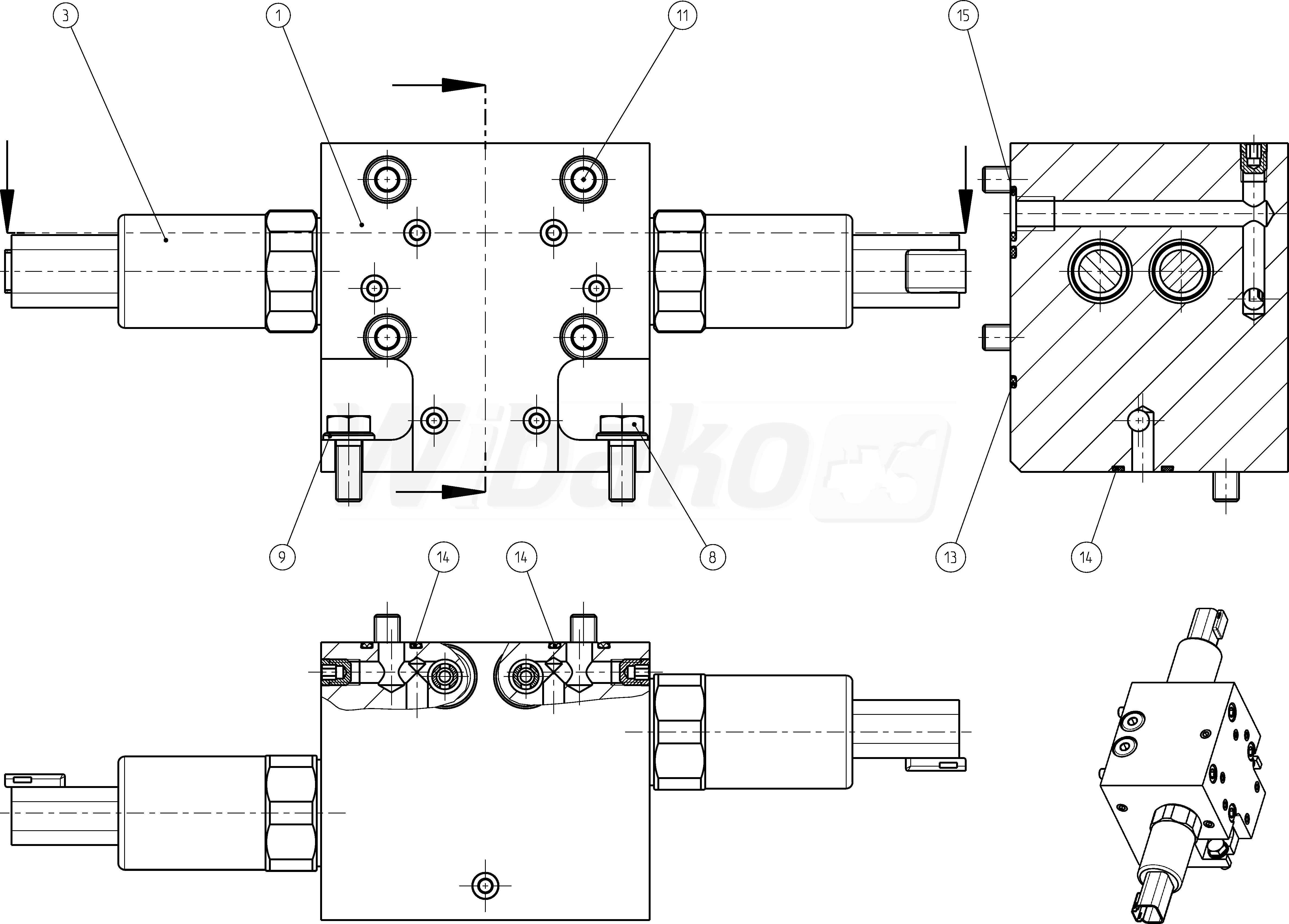

A4VG125DE4D1/32L-NAF02F021DP-S (R902248333)
CONTROL MODULE (44689)

CONTROL MODULE
(44689)


1

VALVE HOUSING
(44507)

Group »


3

PRESSURE REDUCING VALVE
(16132)


8

HEXAGON SCREW
(13334)


9

WASHER
(44945)


11

SOCKET HEAD CAP SCREW
(12219)


13

O-RING
(10508)


14

O-RING
(10512)


15

O-RING
(44946)



Return
