A4VG125EP2D1/X+A4FM125/X (R902001259)

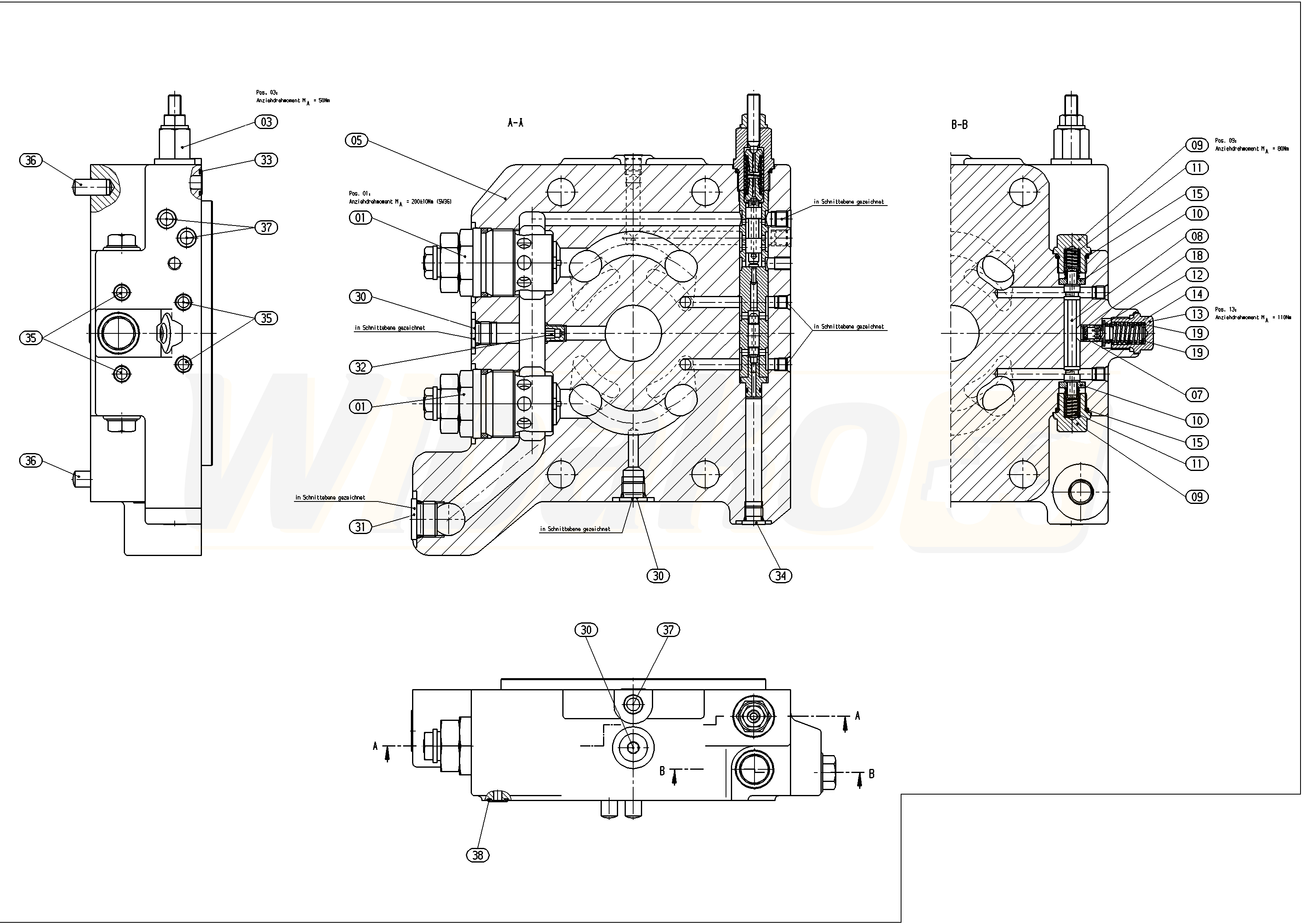

CONNECTION PLATE (45110)

CONNECTION PLATE
(45110)


1

DELIVERY-VALVE ASSEMBLY
(11143)

Group »


3

PRESSURE CUT-OFF VALVE
(45111)

Group »


5

CONNECTION PLATE
(45470)


7

ORIFICE
(11730)


8

FLUSHING PISTON
(45471)


9

SCREW PLUG
(11712)


10

WASHER
(11714)


11

COMPRESSION SPRING
(11715)


12

VALVE SPOOL
(19711)


13

SCREW PLUG
(11713)


14

COMPRESSION SPRING
(11716)


15

O-RING
(11719)


18

RETAINING RING
(11722)


19

SHIM RING
(11723)


30

SCREW PLUG
(11370)


31

SCREW PLUG
(11369)


32

NOZZLE
(19712)


33

O-RING
(10450)


34

SCREW PLUG
(11371)


35

DOUBLE BREAK-OFF PLUG
(19009)


36

STRAIGHT PIN
(12985)


37

DOUBLE BREAK-OFF PLUG
(19010)


38

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
