A4VG125EP2DMT1/32R-XSF02K07XE-S (R902037730)

Axial piston variable pump A4VG. Geometric displacement 125 cm3. Pressure cut-off. Mechanical stroke limiter, externally adjustable. Stroking chamber pressure port X3, X4. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise.
1

ROTARY GROUP
(45697)

Group »


2

CONTROL
(29173)

Group »


3

CONNECTION PLATE
(32553)

Group »


4

BELL HOUSING
(23033)

Group »


5

CONTROL MODULE
(45488)

Group »


10

HOUSING
(13179)


13

PIVOT PIN
(11100)


14

POITIONING PIN
(10183)


22

SCREW PLUG
(10395)


24

SCREW PLUG
(13330)


25

O-RING
(11174)


26

SCREW PLUG
(11753)


28

NOZZLE
(13378)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10190)


33

SCREW PLUG
(11007)


35

SCREW PLUG
(10220)


37

SCREW PLUG
(13379)


39

SCREW PLUG
(17143)


41

THREADED REDUCING STUD
(32629)


46

SETSCREW
(13380)


47

SEALING NUT
(10399)


48

SCREW PLUG
(10397)


49

PLUG
(16307)


68

NOZZLE
(12443)


94

ORIFICE SCREW
(23876)

Group »


98

SEAL KIT
(13183)



Return

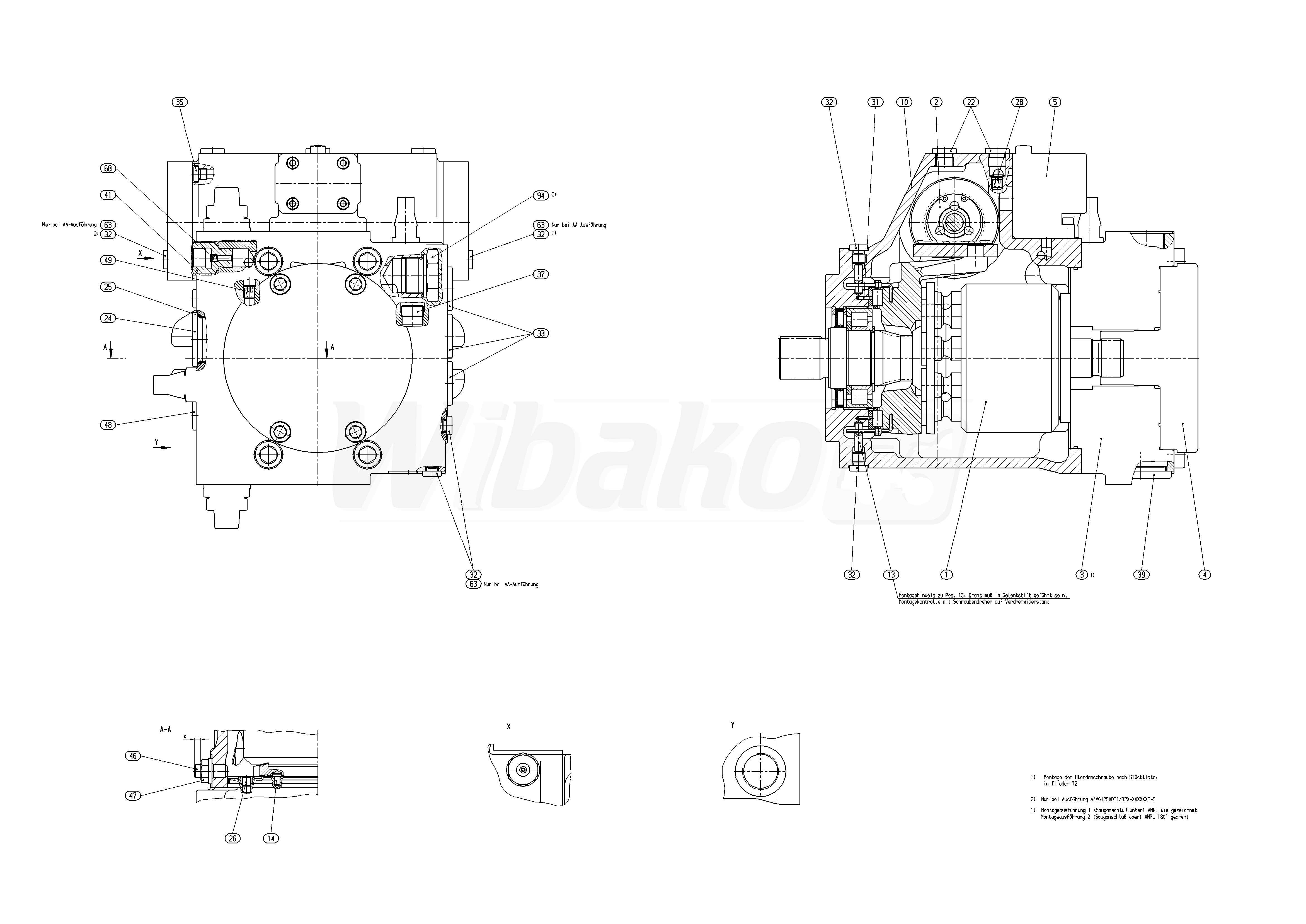

The above diagrams belong to Rexroth www.boschrexroth.com
