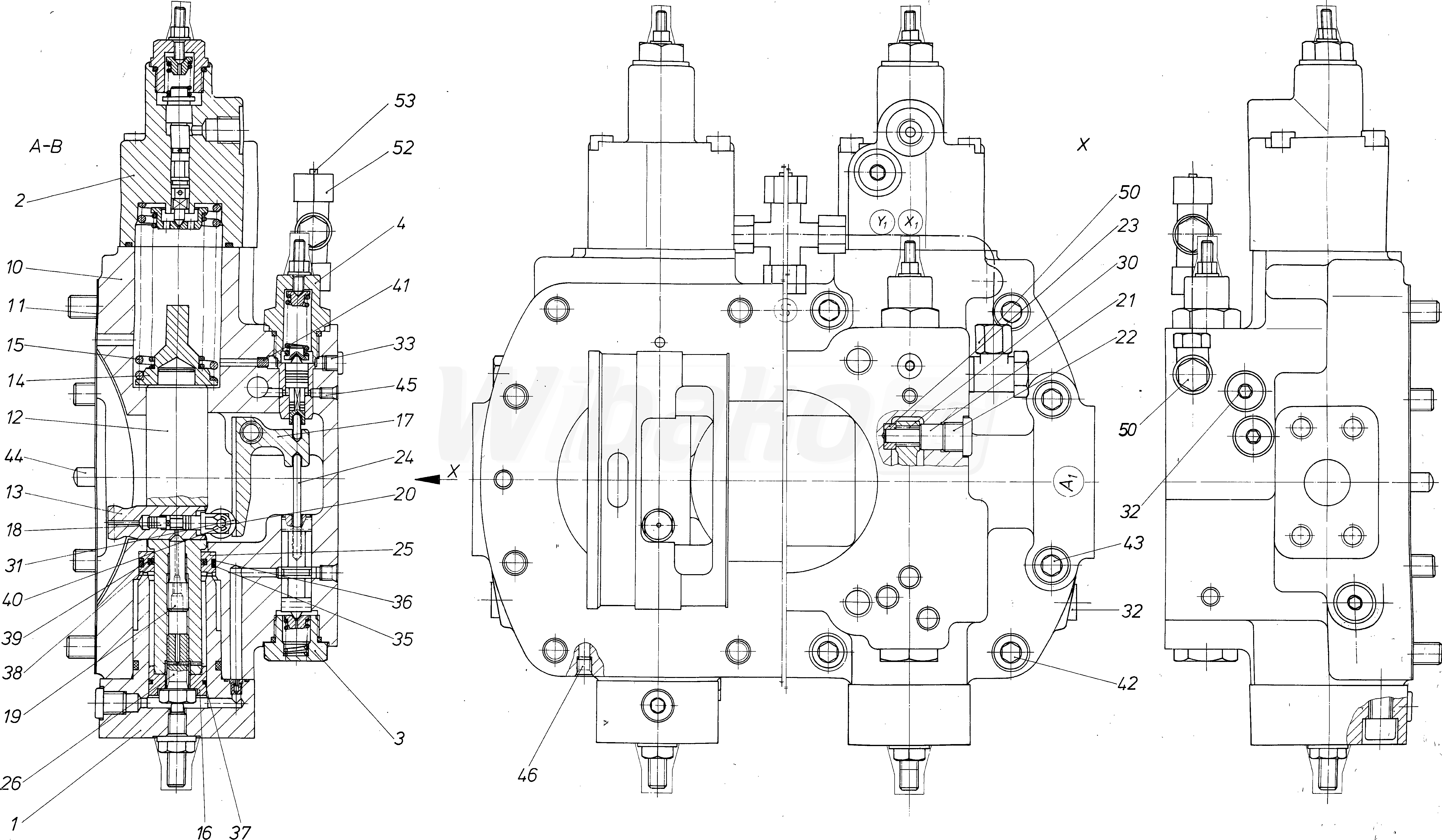

A8VO107LG2H2/60R1-PZG05K39 (R909437027)
CONTROL (14835)

CONTROL
(14835)


1

COVER
(12156)

Group »


2

CONTROL UNIT
(14840)

Group »


3

CONTROL PART
(14841)

Group »


4

ADJUSTING PART
(14842)

Group »


10

CONTROL HOUSING
(14843)


11

SEAL
(12159)


12

POSITIONING PISTON
(12160)


13

POSITIONING STUD
(14844)


14

SPRING DISK
(14845)


15

COMPRESSION SPRING
(11200)


16

PISTON
(12163)


17

LEVER
(14846)


18

MEASURING PISTON
(14441)


19

SETSCREW
(14847)


20

BOLT
(10324)


21

BEARING BOLT
(14848)


22

SCREW PLUG
(12022)


23

BUSHING
(10322)


24

PIN
(14849)


25

SEAL RING
(12165)


26

HEXAGON SCREW
(14850)


30

NEEDLE-ROLLER ASSEMBLY
(10328)


31

DEEP-GROOVE BALL BEARING
(10329)


32

SCREW PLUG
(10015)


33

SCREW PLUG
(10330)


35

O-RING
(12167)


36

BACKUP RING
(12168)


37

STEEL SEALING RING
(12006)


38

ROD SEAL


39

O-RING
(12169)


40

LOCKING WASHER
(10334)


41

SETSCREW
(11173)


42

SOCKET HEAD CAP SCREW
(10339)


43

SOCKET HEAD CAP SCREW
(11955)


44

STRAIGHT PIN
(10338)


45

DOUBLE BREAK-OFF PLUG


46

DOUBLE BREAK-OFF PLUG



Return
