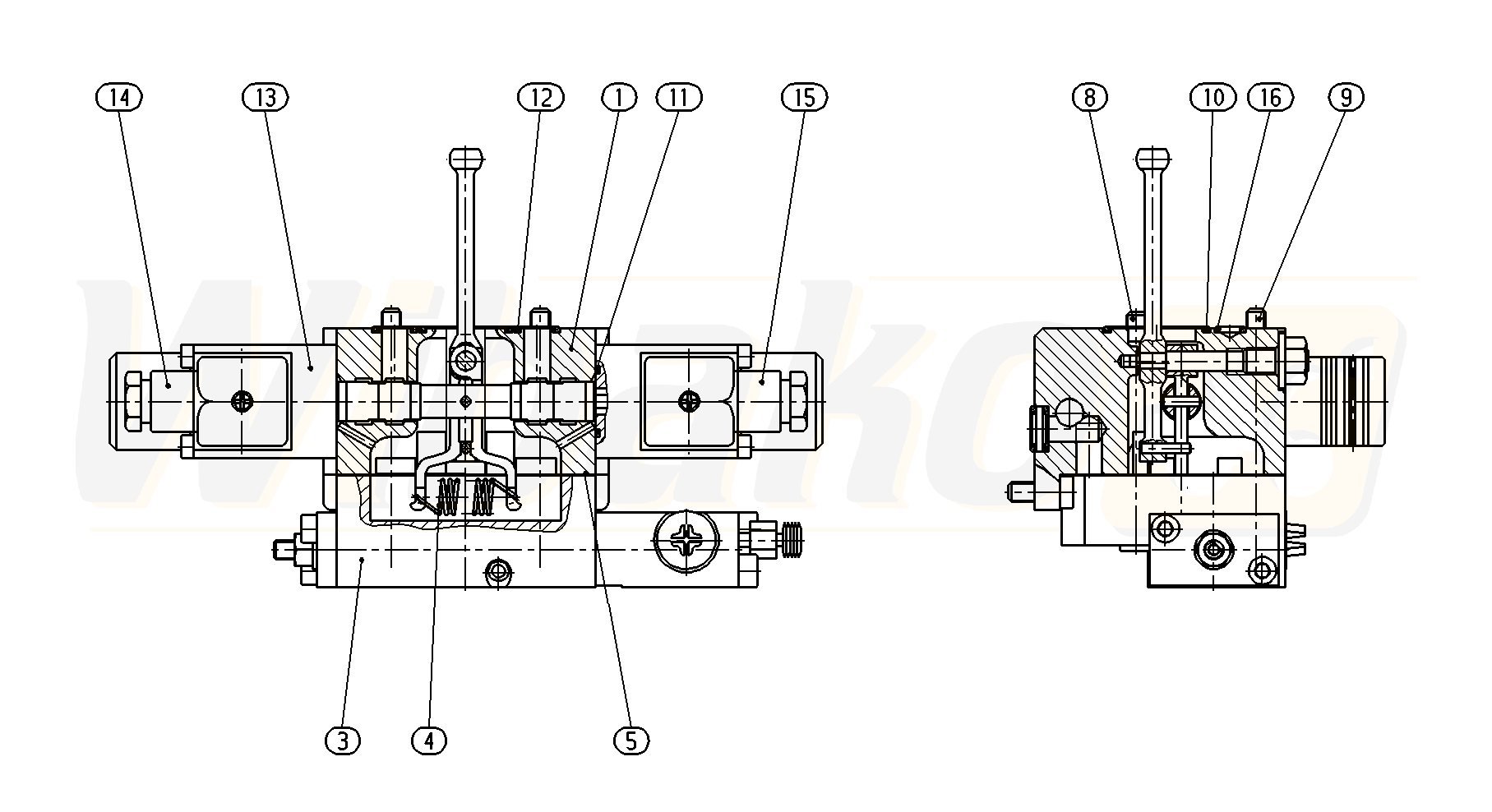

A4VG125EP1DX/32R-NXF02F021S-S (R902048648)
CONTROL MODULE (45865)

CONTROL MODULE
(45865)


1

CONTROL MODULE
(45165)

Group »


3

INCHING DEVICE
(45416)

Group »


4

EXTENSION SPRING
(14561)


5

SEAL
(13412)


8

SOCKET HEAD CAP SCREW
(11432)


9

SOCKET HEAD CAP SCREW
(11854)


10

O-RING
(10508)


11

O-RING
(12696)


12

O-RING
(15512)


13

PROPORTIONAL SOLENOID
(16874)

Group »


14

PLUG-IN CONNECTOR
(10518)


15

PLUG-IN CONNECTOR
(10519)


16

O-RING
(24903)


98

SEAL KIT
(11169)



Return
