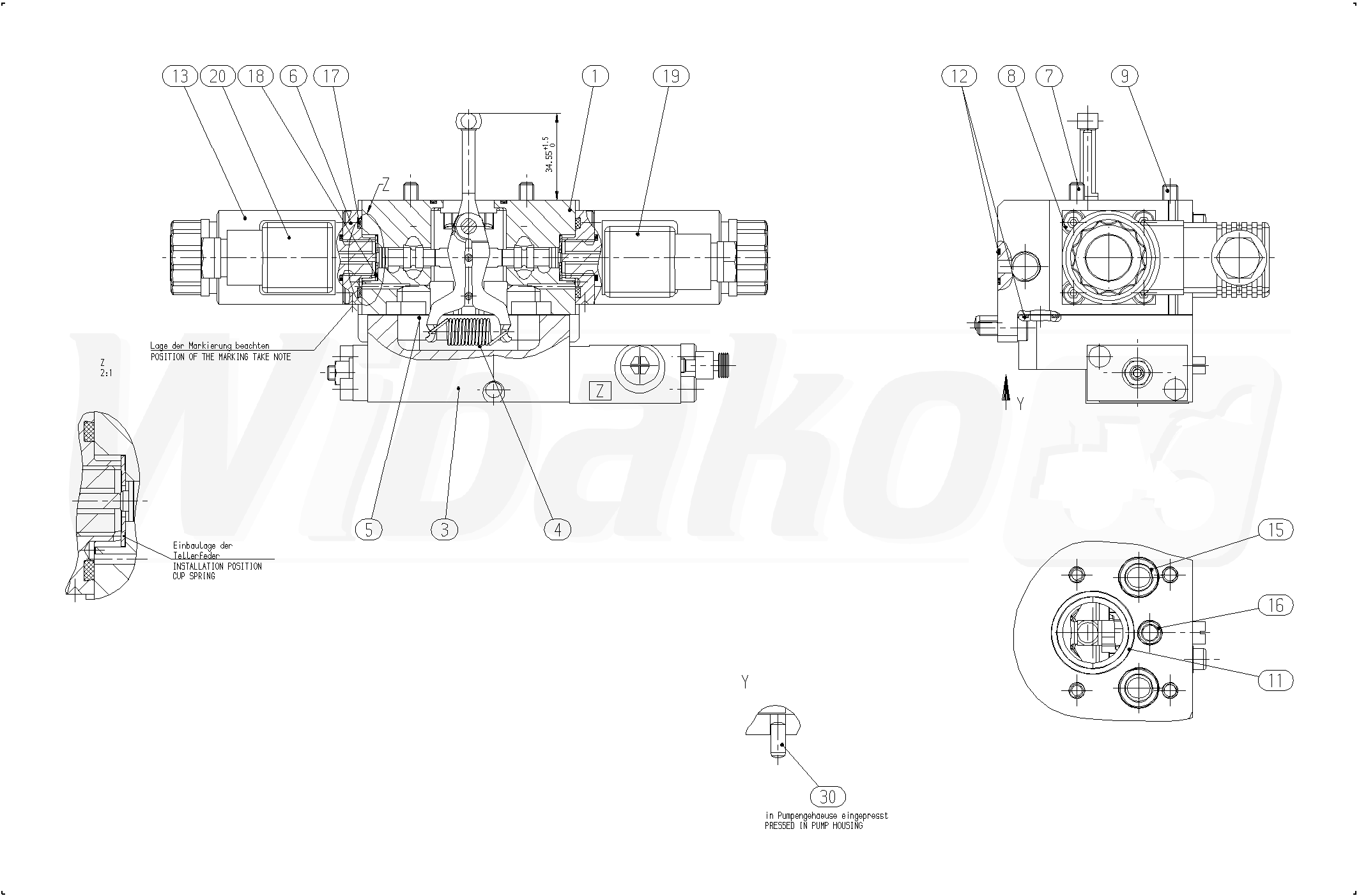

A4VG125EP2/32+A4VG125+A10VO45DR/31-K (R902060635)
CONTROL MODULE (32345)

CONTROL MODULE
(32345)


1

BASIC UNIT
(32346)

Group »


3

INCHING DEVICE
(32348)

Group »


4

EXTENSION SPRING
(13414)


5

SEAL
(13412)


6

LOCATION PIECE
(13796)


7

SOCKET HEAD CAP SCREW
(11432)


8

SOCKET HEAD CAP SCREW
(12810)


9

SOCKET HEAD CAP SCREW
(11854)


11

O-RING
(10508)


12

O-RING
(15512)


13

PROPORTIONAL SOLENOID
(15513)


15

O-RING
(10450)


16

O-RING
(10370)


17

O-RING
(11843)


18

DISC SPRING
(26825)


19

PLUG-IN CONNECTOR
(10519)


20

PLUG-IN CONNECTOR
(10518)


30

STRAIGHT PIN
(12694)



Return
