A4VG125EP1D1/32L-NSF10F001XH-S (R902077532)
Axial piston variable pump A4VG. Geometric displacement 125 cm3. Pressure cut-off. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): counter-clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for single pump. Mounting flange SAE J744 2+4-hole. SAE working port A and B, same side left. Suction port S bottom. Integrated boost pump. Without through drive. High pressure relief valve, pilot operated 100 to 420 bar with bypass.

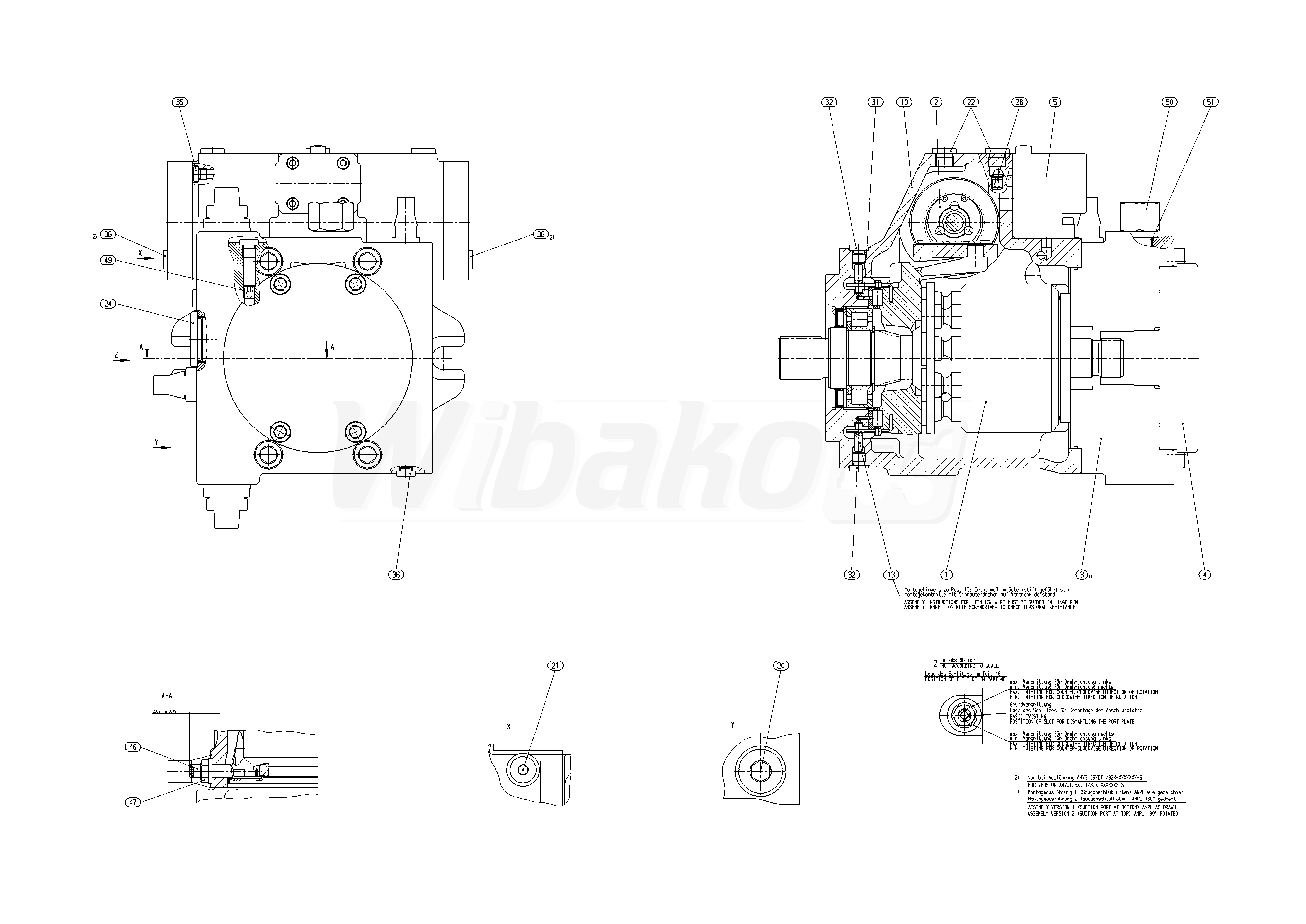

The above diagrams belong to Rexroth www.boschrexroth.com
