A4VG125EP1MT1/32R-NSF02F021DP-ES (R902108154)

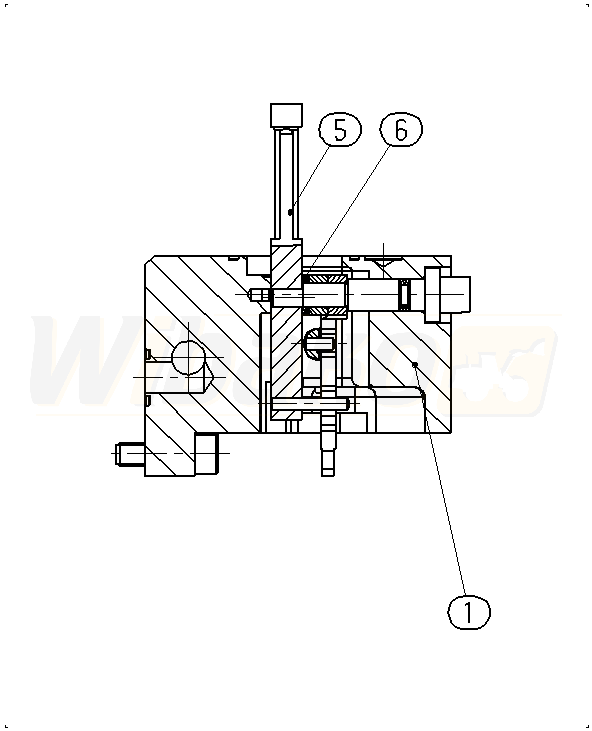

BASIC UNIT (46734)

BASIC UNIT
(46734)


1

CONTROL HOUSING
(32341)

Group »


5

FEEDBACK LEVER
(13411)


6

WASHER
(13416)


6

WASHER
(13417)


6

WASHER
(13418)


6

WASHER
(13419)


6

WASHER
(13420)


6

WASHER
(13421)


6

WASHER
(13422)


6

WASHER
(13423)


6

WASHER
(13424)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
