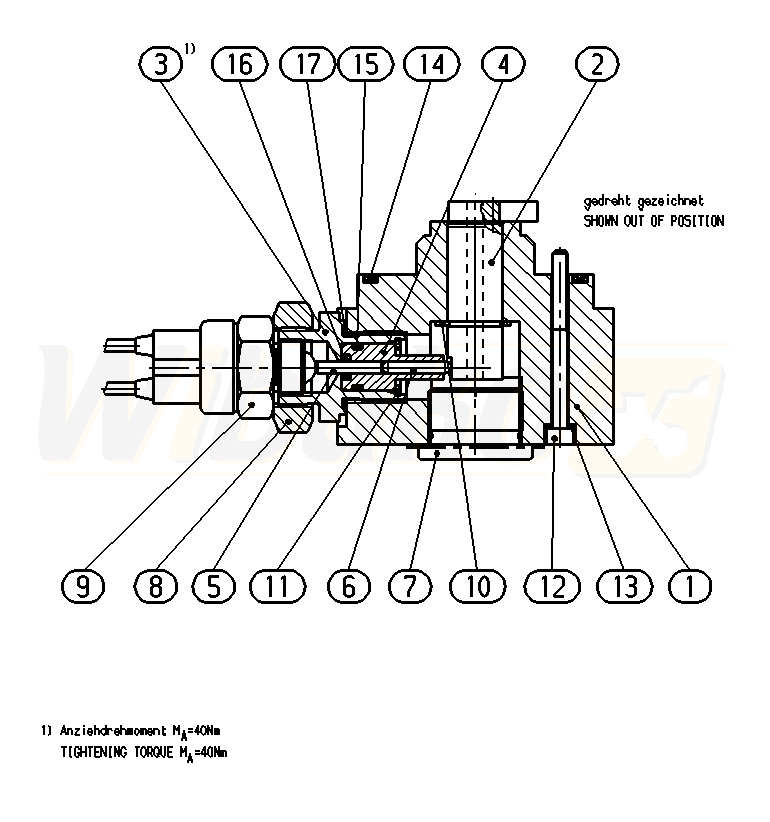

A4VG125EP4DM1/32R-NZF02F001MH-S (R902157894)
SWITCH ASSEMBLY (45839)

SWITCH ASSEMBLY
(45839)


1

SENSOR HOUSING
(46115)


2

SENSOR SHAFT
(46116)


3

NECK
(46117)


4

SEAL BUSHING
(46118)


5

PIN
(46119)


6

KEY PIN
(46120)


7

SCREW PLUG
(10394)


8

HEXAGON NUT
(21136)


9

SWITCH
(25621)


10

RETAINING RING
(25622)


11

RETAINING RING
(11447)


12

SOCKET HEAD CAP SCREW
(25623)


13

SEAL RING
(46121)


14

O-RING
(46122)


15

O-RING
(10227)


16

O-RING
(12499)


17

SEAL RING
(17800)



Return
