A4VG125HW/32+A4VG28EP2/30 (R902024137)

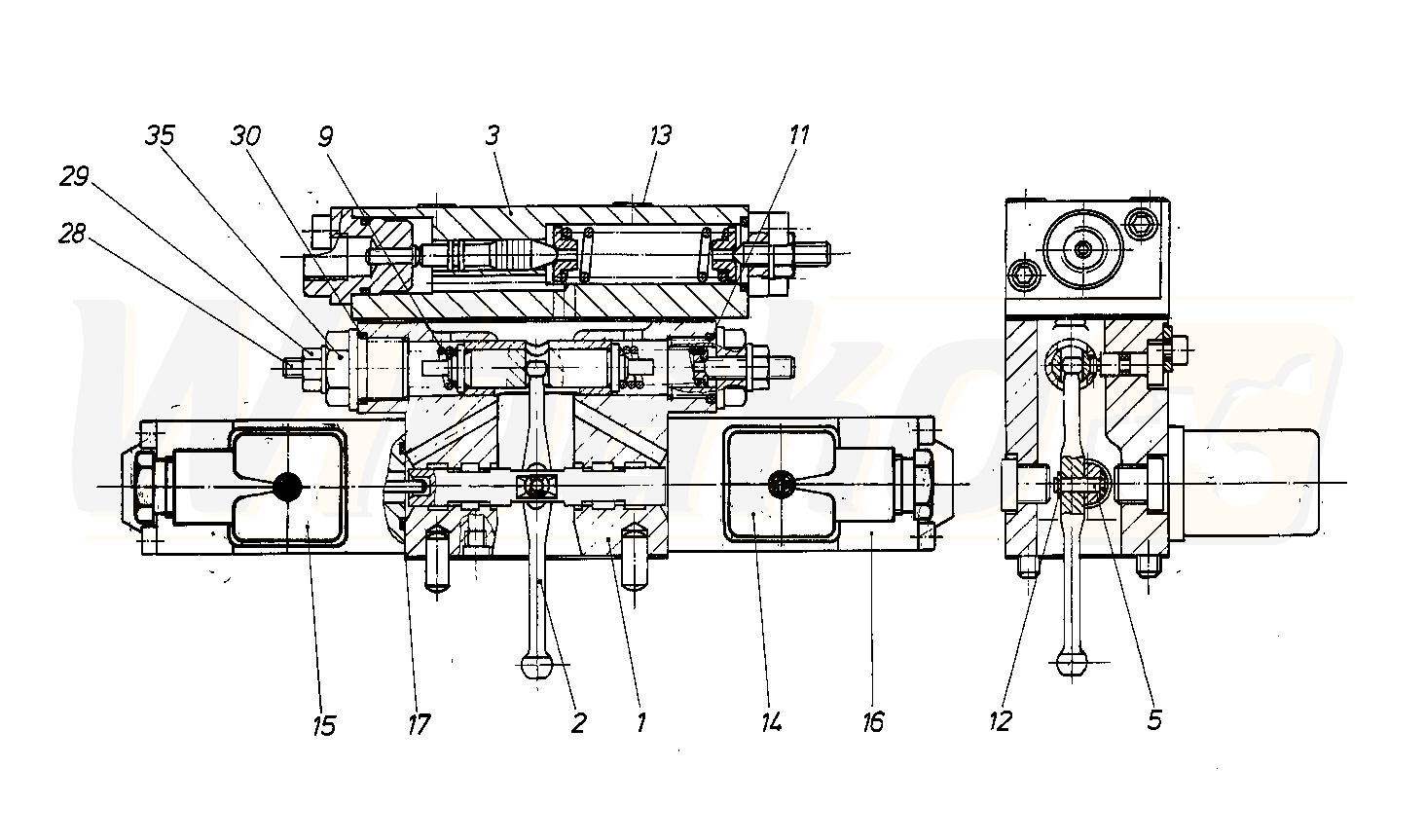

CONTROL UNIT (29772)

CONTROL UNIT
(29772)


1

CONTROL MODULE
(23535)

Group »


2

FEEDBACK LEVER
(24696)


3

UNLOADING VALVE
(23573)

Group »


5

BOLT
(12678)


9

COMPRESSION SPRING
(17480)


11

SPRING DISK
(24698)


12

LOCKING WASHER
(12679)


13

SOCKET HEAD CAP SCREW
(24739)


14

PLUG-IN CONNECTOR
(10518)


15

PLUG-IN CONNECTOR
(10519)


17

O-RING
(12696)


28

SETSCREW
(10909)


29

SEALING NUT
(10369)


30

O-RING
(11092)


35

SCREW PLUG
(24699)


45

PROPORTIONAL SOLENOID
(14205)

Group »



Return
