AA4VG125DE1DM1/32R-NSF52F001FC-S (R902037702)

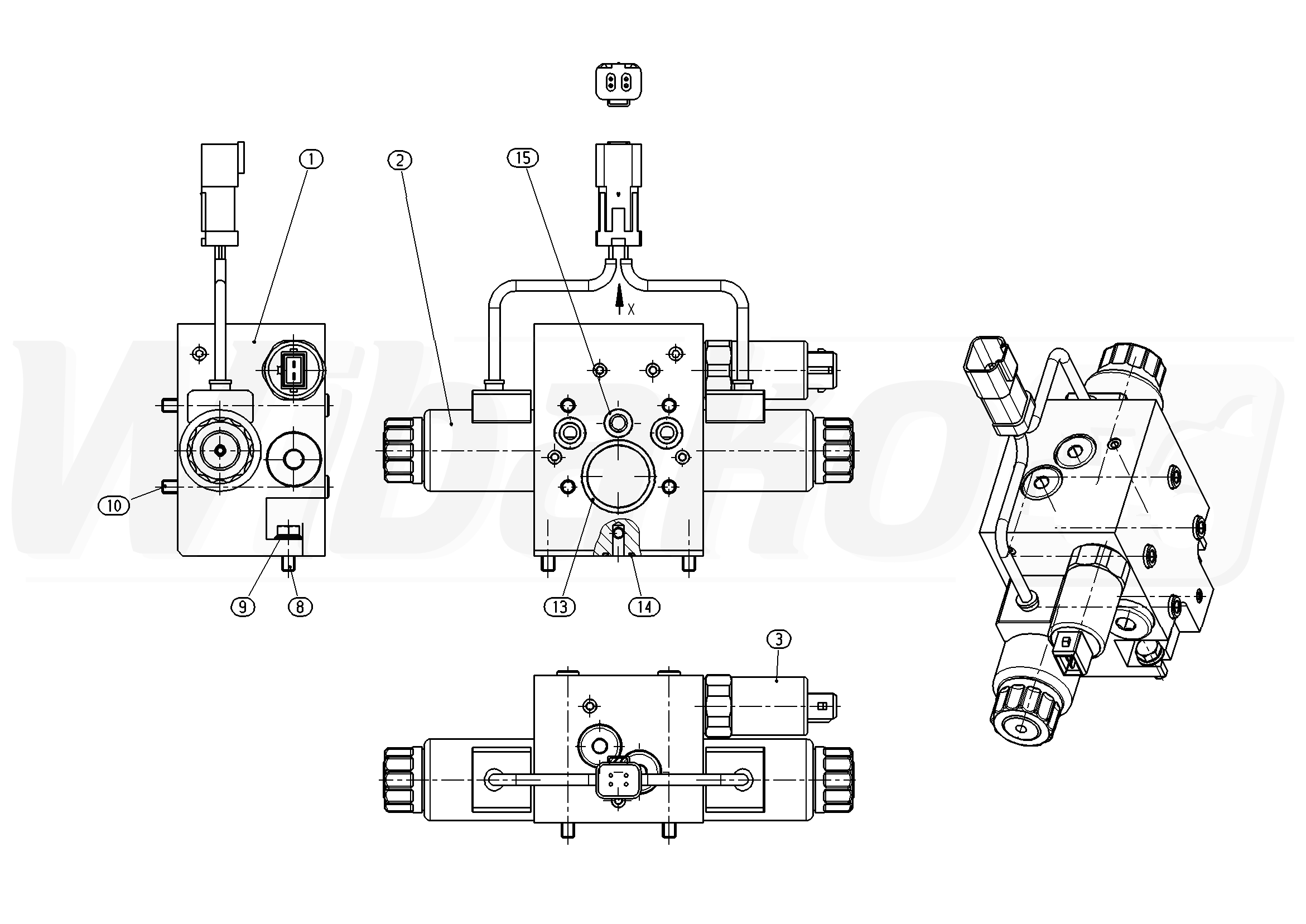

DIRECTIONAL-CONTROL VALVE (49354)

DIRECTIONAL-CONTROL VALVE
(49354)


1

VALVE HOUSING
(49355)

Group »


2

SWITCHING SOLENOID
(15670)


3

PRESSURE REDUCING VALVE
(23312)


8

HEXAGON SCREW
(13334)


9

WASHER
(32611)


10

SOCKET HEAD CAP SCREW
(10785)


13

O-RING
(10508)


14

O-RING
(15512)


15

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
