AA4VG125ED1DM1/32R-NSF52F001F-S (R902041580)

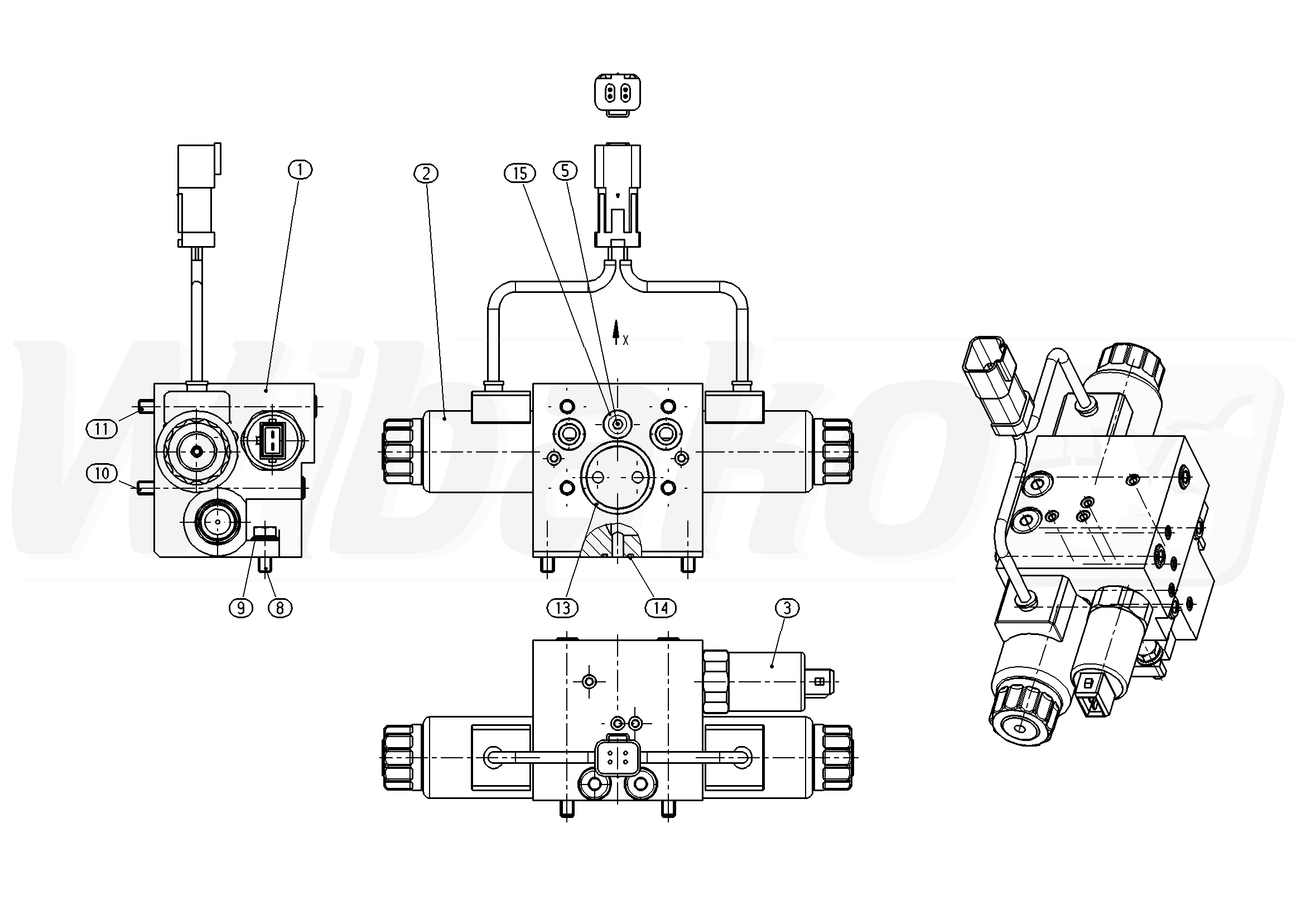

DIRECTIONAL-CONTROL VALVE (49396)

DIRECTIONAL-CONTROL VALVE
(49396)


1

VALVE HOUSING
(49397)

Group »


2

SWITCHING SOLENOID
(15670)


3

PRESSURE REDUCING VALVE
(23312)


5

THROTTLE SCREW
(13181)


8

HEXAGON SCREW
(13334)


9

WASHER
(32611)


10

SOCKET HEAD CAP SCREW
(10785)


11

SOCKET HEAD CAP SCREW
(12220)


13

O-RING
(10508)


14

O-RING
(15512)


15

O-RING
(10227)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
