AA4VG125EP1D1/32L-NSF52F001SH-S (R902073206)

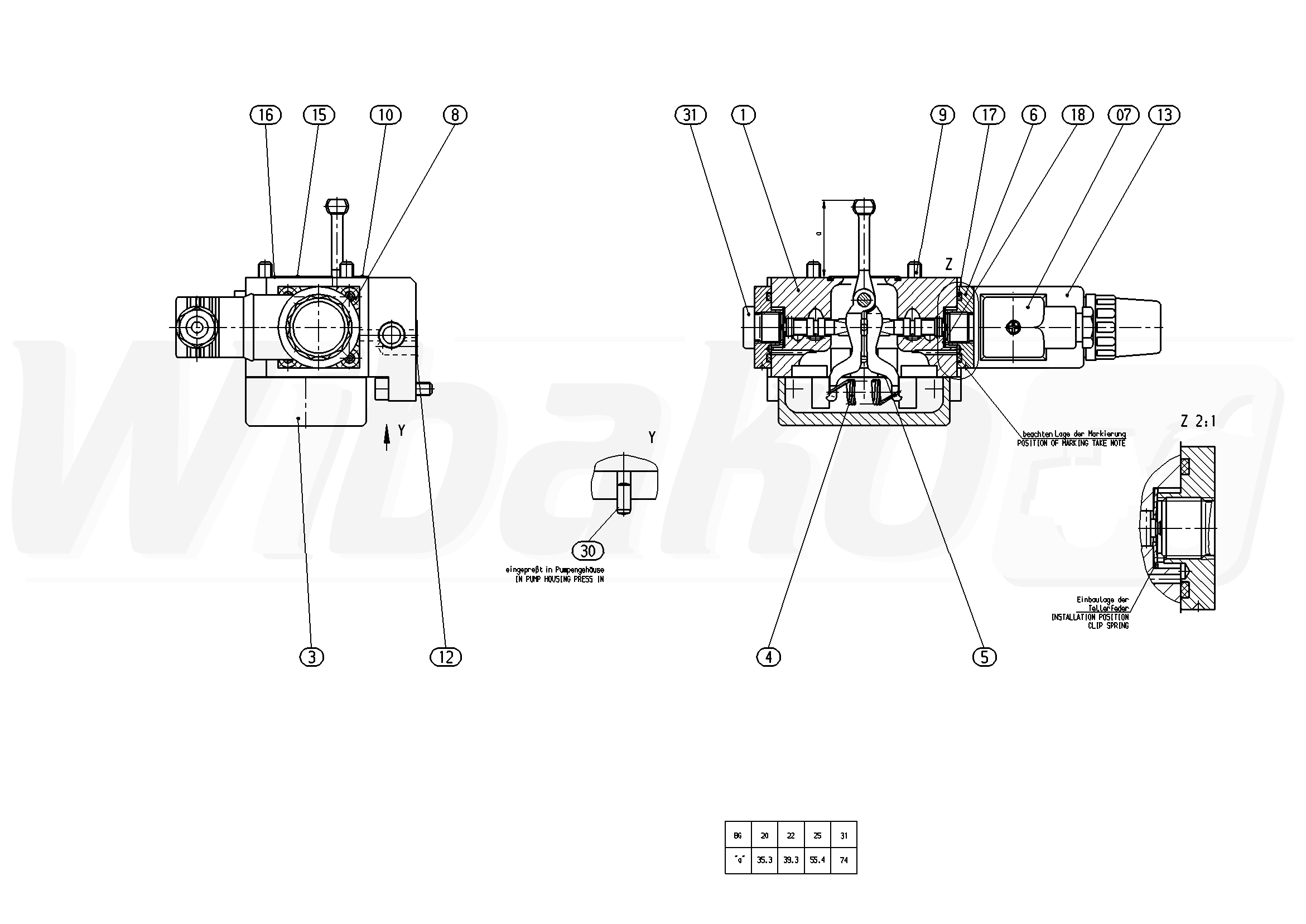

CONTROL MODULE (49699)

CONTROL MODULE
(49699)


1

BASIC UNIT
(15511)

Group »


3

COVER
(13413)


4

EXTENSION SPRING
(13414)


5

SEAL
(13412)


6

LOCATION PIECE
(13796)


7

PLUG-IN CONNECTOR
(10518)


8

SOCKET HEAD CAP SCREW
(12810)


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(10508)


12

O-RING
(15512)


13

PROPORTIONAL SOLENOID
(22493)


15

O-RING
(10450)


16

O-RING
(10370)


17

O-RING
(11843)


18

DISC SPRING
(26825)


30

STRAIGHT PIN
(12694)


31

SCREW PLUG
(10015)


98

SEAL KIT
(11169)



Return
