A4VG125HWDT7/32R-NSF02F021F-S (R902104720)

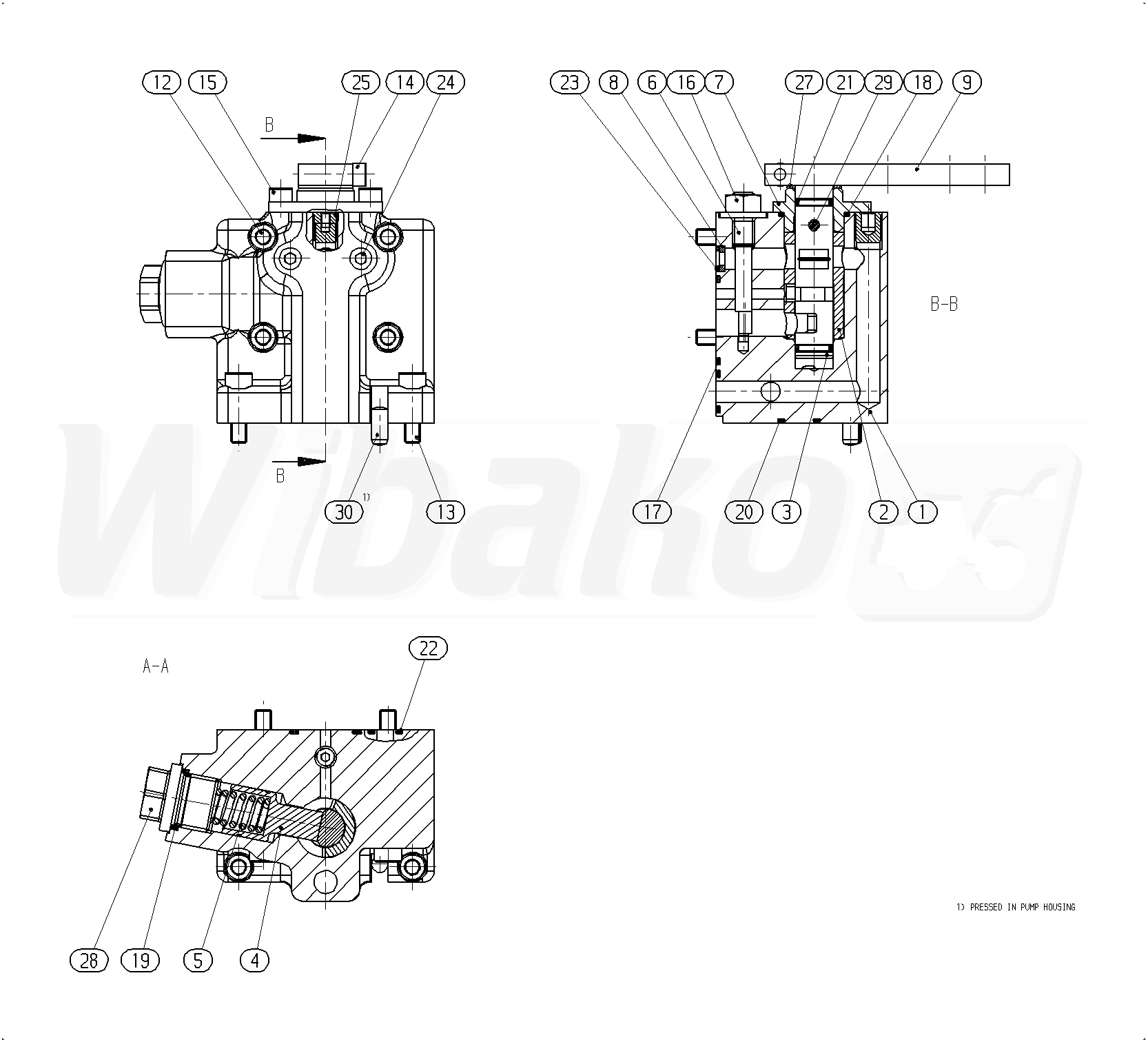

BASIC UNIT (32987)

BASIC UNIT
(32987)


1

HOUSING
(33282)


2

CONTROL SLEEVE
(23337)


3

CONTROL SHAFT
(23338)


4

SPRING BUSH
(12805)


5

COMPRESSION SPRING
(12728)


6

ECCENTRIC PIN
(14567)


7

COVER
(23339)


8

RING
(32868)


9

LEVER
(12681)


12

SOCKET HEAD CAP SCREW
(10505)


13

SOCKET HEAD CAP SCREW
(10506)


14

SOCKET HEAD CAP SCREW
(10698)


15

SOCKET HEAD CAP SCREW
(12810)


16

SEALING NUT
(10215)


17

O-RING
(10508)


18

O-RING
(10509)


19

O-RING
(10771)


20

O-RING
(10450)


21

O-RING
(15512)


22

O-RING
(10227)


23

O-RING
(10370)


24

PLUG
(17025)


25

PLUG
(13073)


27

SHIM RING
(17166)


28

SCREW PLUG
(12812)


29

NEEDLE-ROLLER
(23340)


30

STRAIGHT PIN
(12694)
