AA4VG56EZ2M1/32R-NSCXXN003EC-S (R902055006)

Axial piston variable pump A4VG. Geometric displacement 56 cm3. Two-point control, electric U = 24 V. Mechanical stroke limiter, externally adjustable. Without DA control valve. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for single pump. Mounting flange SAE J744 2-hole.
1

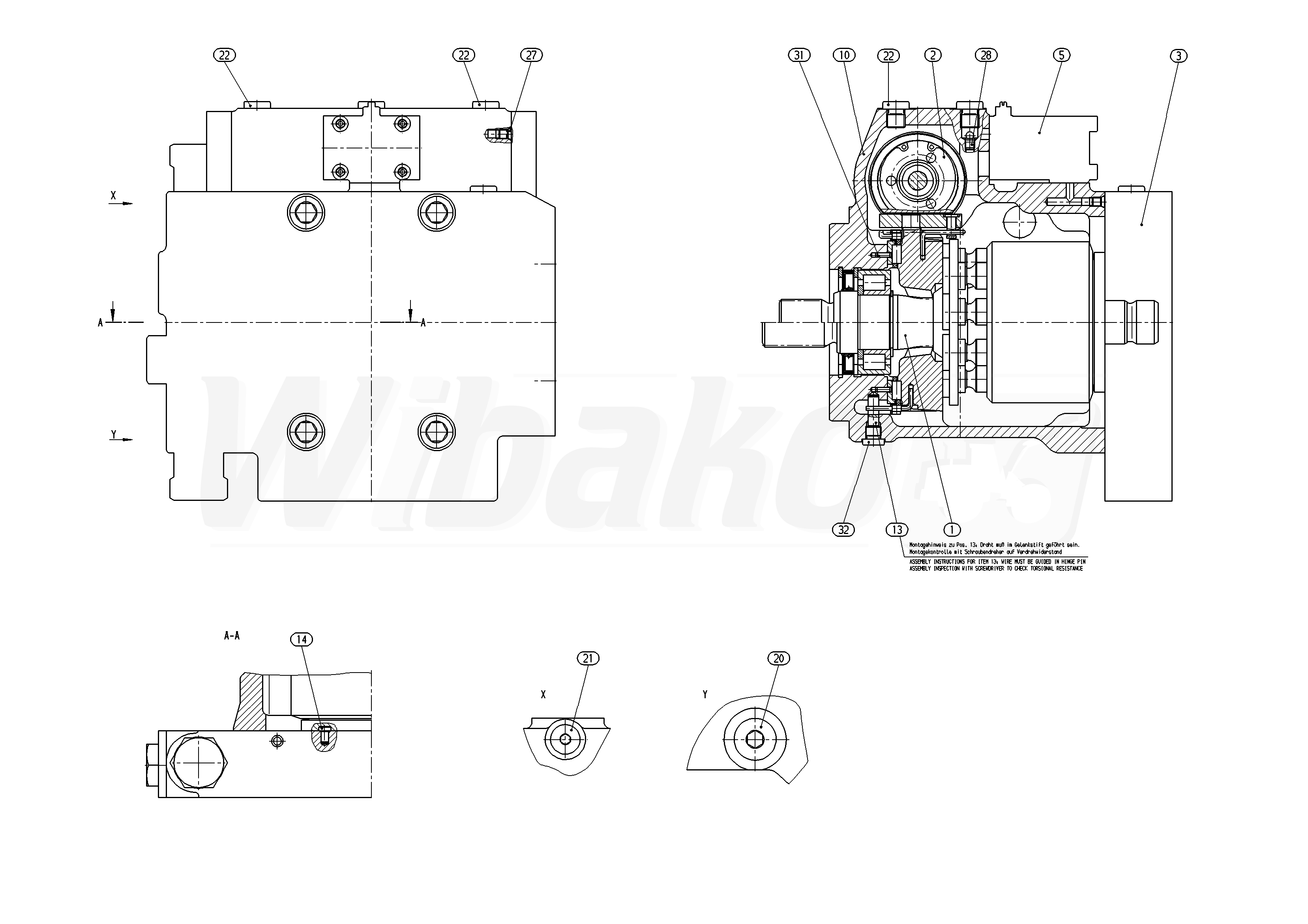

ROTARY GROUP
(22635)

Group »


2

CONTROL
(18500)

Group »


3

CONNECTION PLATE
(22864)

Group »


5

DIRECTIONAL-CONTROL VALVE
(22860)

Group »


10

HOUSING
(23296)


13

PIVOT PIN
(10813)


14

POITIONING PIN
(10183)


20

SCREW PLUG
(14354)


21

SCREW PLUG
(11370)


22

SCREW PLUG
(11371)


27

DOUBLE BREAK-OFF PLUG


28

NOZZLE
(10073)


31

SLOTTED SPRING PIN
(10396)


32

SCREW PLUG
(10220)
