AA4VG125HD1/32L-NSFXXFXX1D-S'M2' (R902064291)

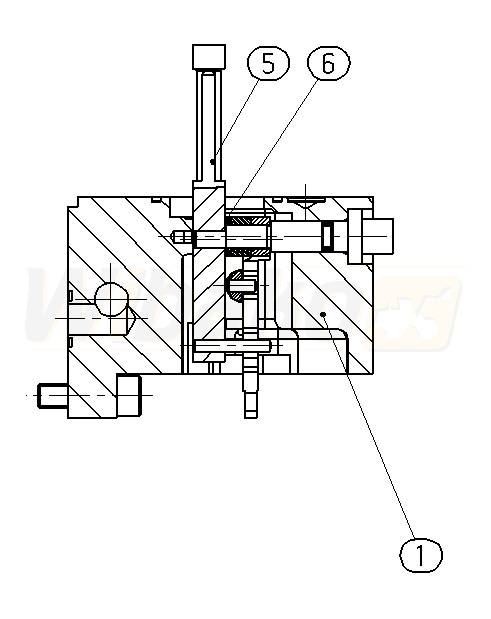

BASIC UNIT (51012)

BASIC UNIT
(51012)


1

CONTROL HOUSING
(51013)

Group »


5

FEEDBACK LEVER
(13411)


6

WASHER
(13416)


6

WASHER
(13417)


6

WASHER
(13418)


6

WASHER
(13419)


6

WASHER
(13420)


6

WASHER
(13421)


6

WASHER
(13422)


6

WASHER
(13423)


6

WASHER
(13424)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
