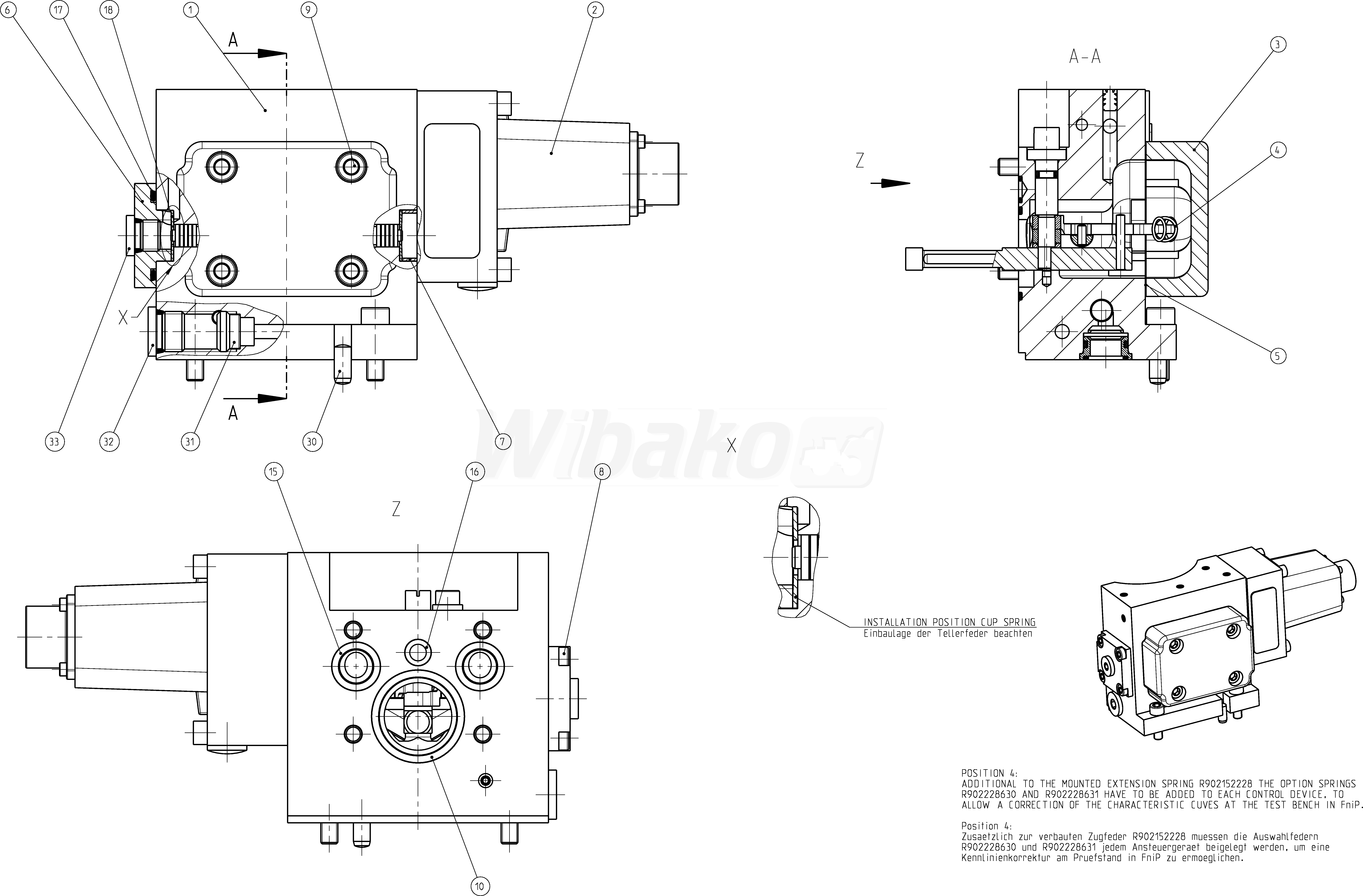

AA4VG125ES7DM1/32R-NSF52F001PM-S (R902133335)
CONTROL MODULE (50885)

CONTROL MODULE
(50885)


1

CONTROL MODULE
(50877)

Group »


2

SERVO VALVE
(50886)

Group »


3

COVER
(13413)


4

EXTENSION SPRING
(50878)


4

EXTENSION SPRING
(50879)


4

EXTENSION SPRING
(50880)


5

SEAL
(13412)


6

LOCATION PIECE
(25961)


7

SPACER SLEEVE
(50881)


8

SOCKET HEAD CAP SCREW
(12810)


9

SOCKET HEAD CAP SCREW
(12219)


10

O-RING
(10508)


15

O-RING
(13428)


16

O-RING
(10370)


17

O-RING
(11843)


18

DISC SPRING
(26825)


30

STRAIGHT PIN
(12694)


31

FILTER
(25964)


32

SCREW PLUG
(11370)


33

SCREW PLUG
(11928)



Return
