AA4VG125EP7/32+AA4VG125EP7/32 (R902146417)

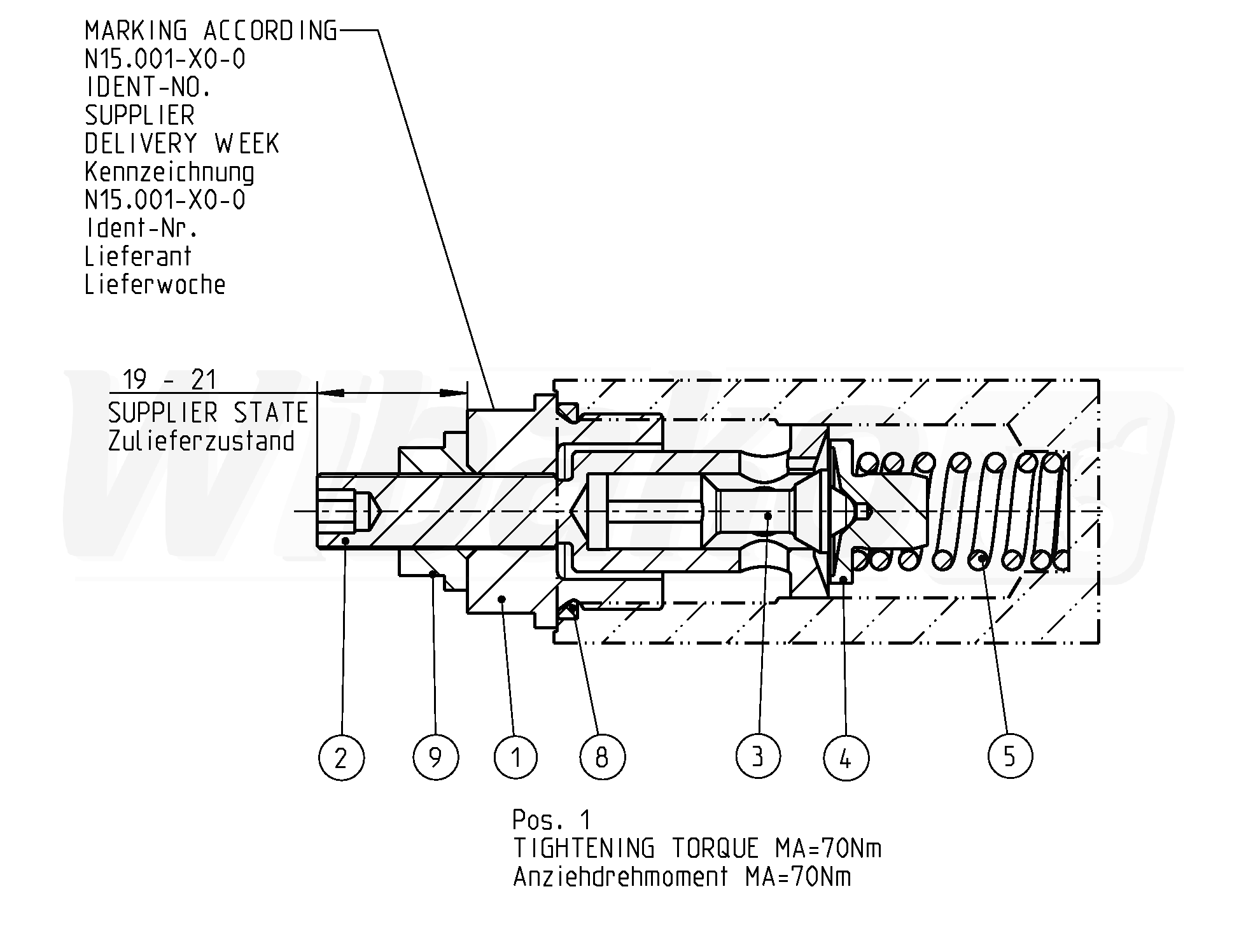

PRESSURE RELIEF VALVE (51226)

PRESSURE RELIEF VALVE
(51226)


1

SCREW PLUG
(14380)


2

ADJUSTING SCREW
(51310)


3

VALVE SPOOL
(10467)


4

SPRING DISK
(10468)


5

COMPRESSION SPRING
(10469)


8

O-RING
(10470)


9

SEALING NUT
(10815)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
