AA4VG125HDD1/32L-NSFXXF001D-S (R902008585)

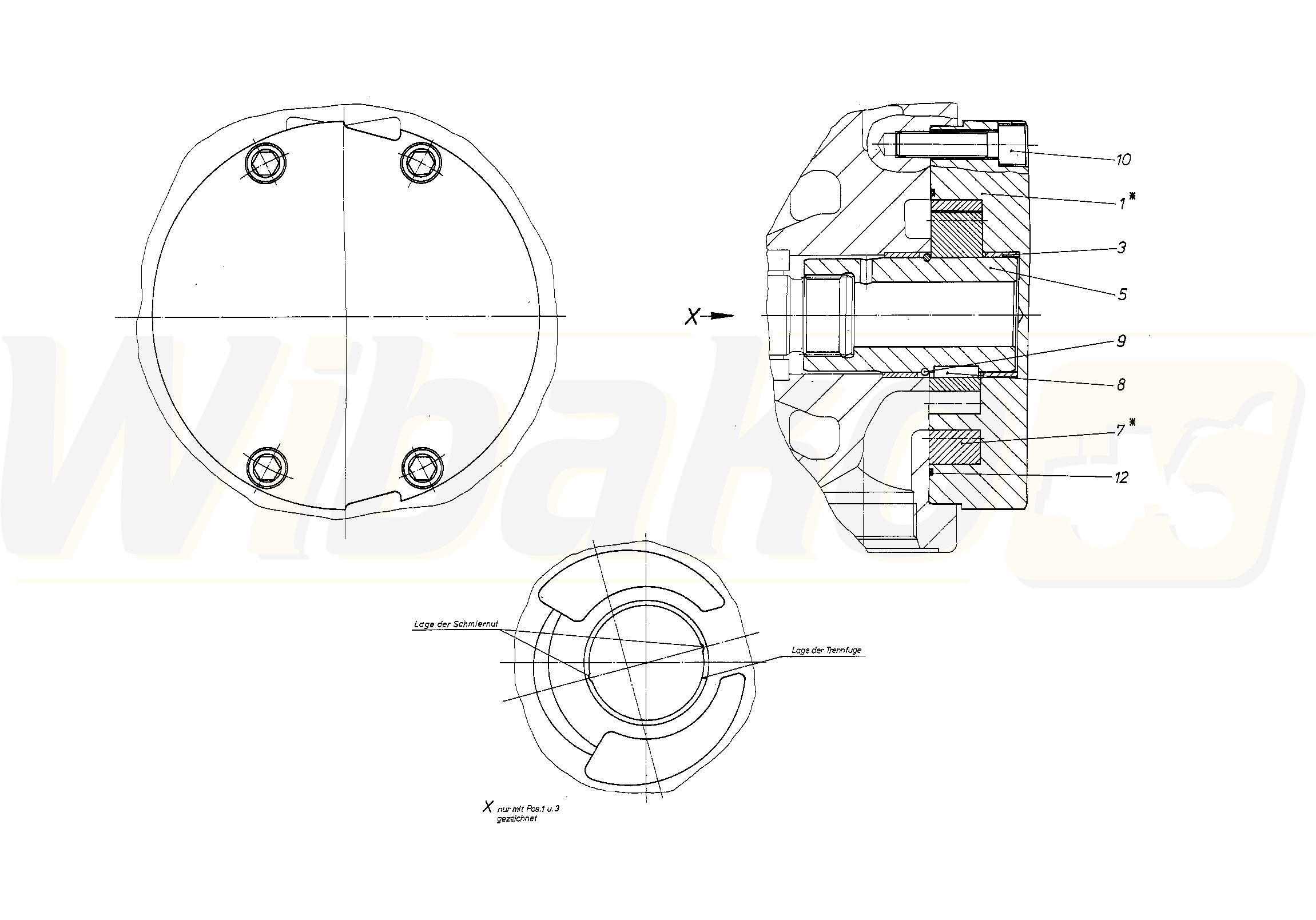

INTERNAL GEAR PUMP (52006)

INTERNAL GEAR PUMP
(52006)


1

PUMP COVER
(52356)


3

BUSHING
(19247)


5

PLUG-IN SHAFT
(52357)


7

WHEEL SET
(29139)


8

PARALLEL KEY
(29140)


9

SNAP RING
(11165)


10

SOCKET HEAD CAP SCREW
(16315)


12

KANTSEAL
(14379)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
