AA4VG125HWDL2/32R-NSF52FXXXFR-S (R902122193)

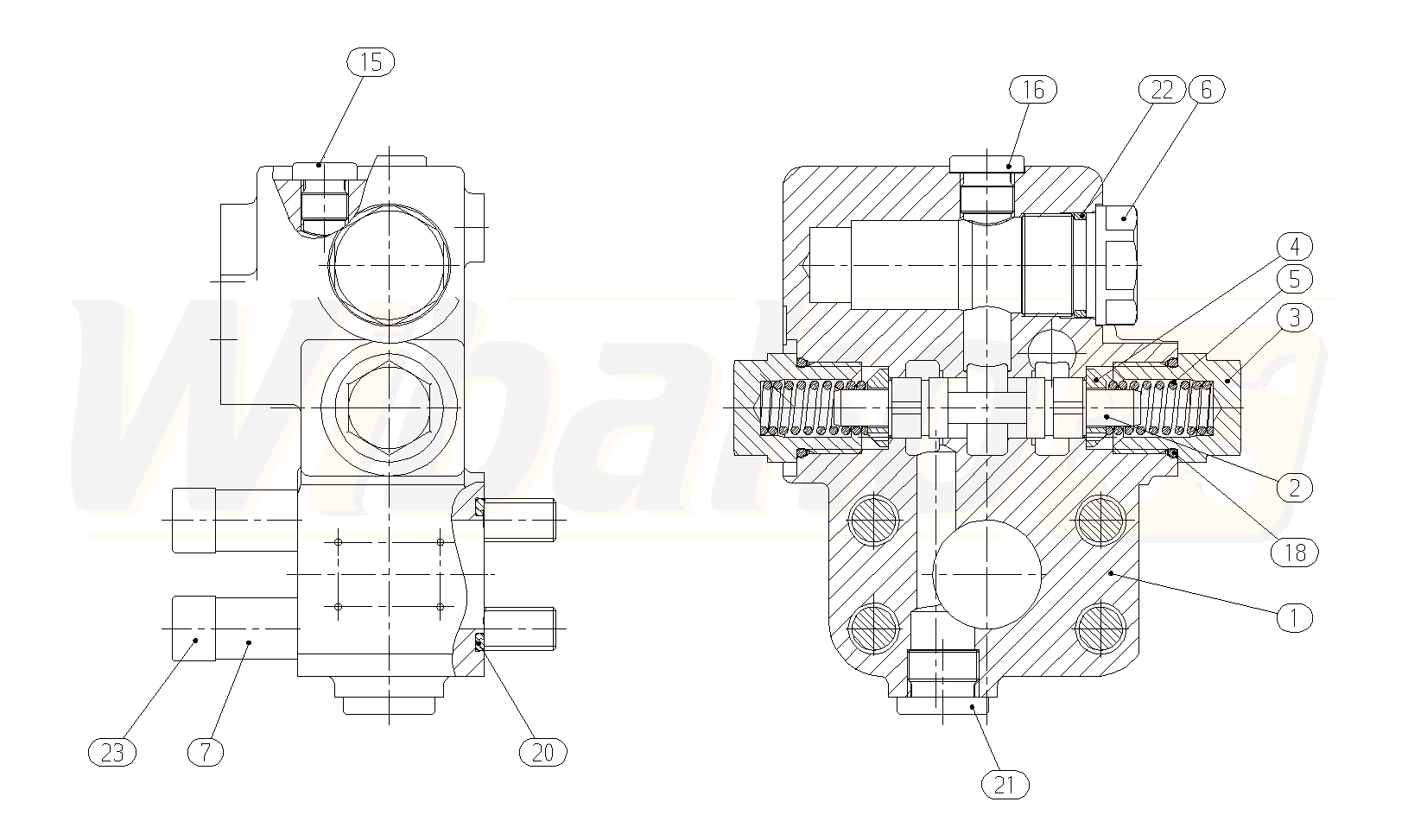

FLUSH/BOOST PRESSURE VALVE (49899)

FLUSH/BOOST PRESSURE VALVE
(49899)


1

HOUSING
(46676)


2

FLUSHING PISTON
(46677)


3

SCREW PLUG
(49912)


4

SPRING DISK
(46679)


5

COMPRESSION SPRING
(49913)


6

SCREW PLUG
(49914)


7

SPACER BUSHING
(49915)


15

SCREW PLUG
(10015)


16

SCREW PLUG
(10395)


18

O-RING
(29476)


20

O-RING
(46683)


21

SCREW PLUG
(24753)


22

O-RING
(10695)


23

SOCKET HEAD CAP SCREW
(49916)
