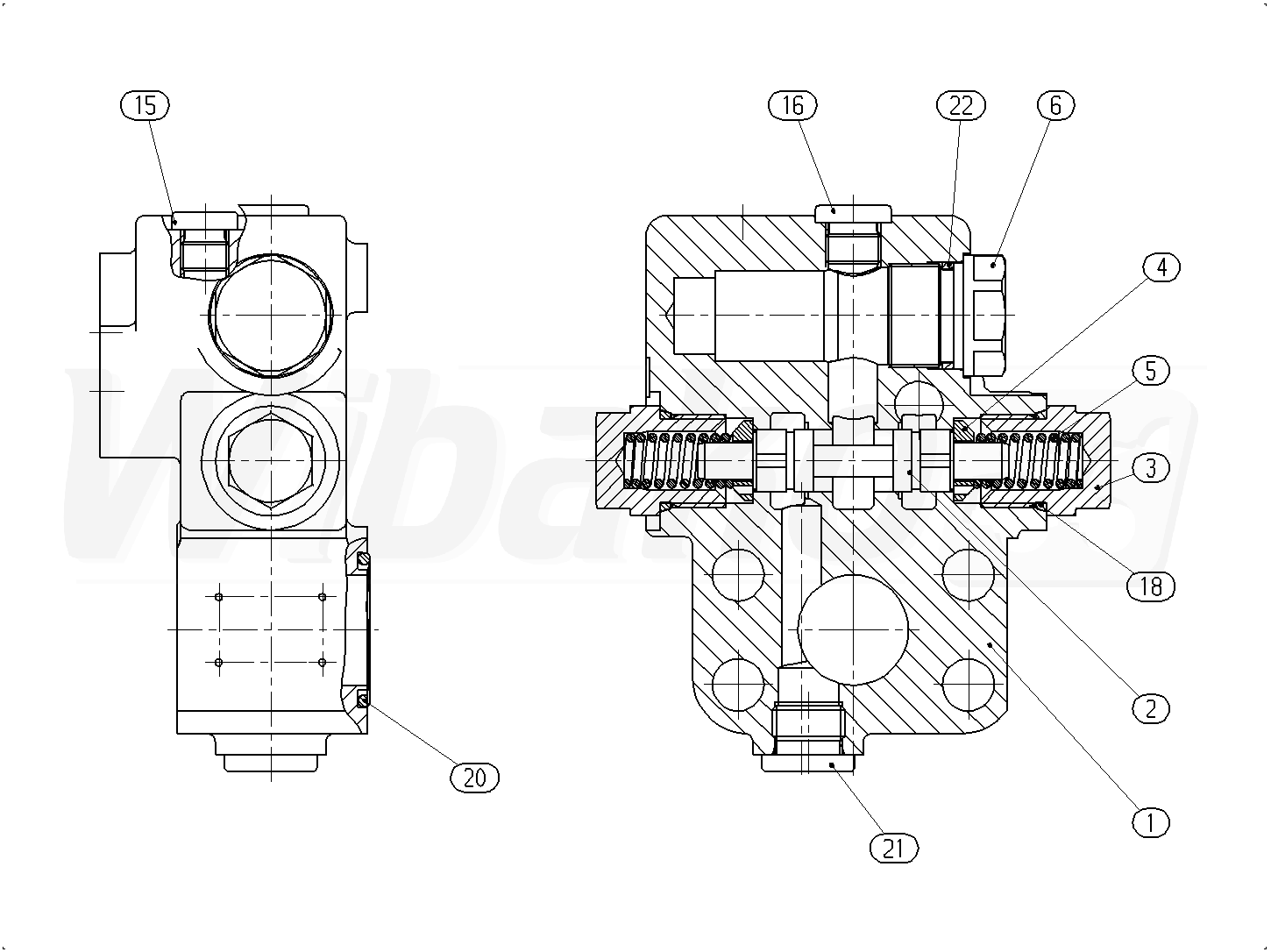

AA4VG125HWDL2/32R-NSF52FXXXF-S (R902123764)
FLUSH/BOOST PRESSURE VALVE (49922)

FLUSH/BOOST PRESSURE VALVE
(49922)


1

HOUSING
(50220)


2

FLUSHING PISTON
(46677)


3

SCREW PLUG
(49912)


4

SPRING DISK
(46679)


5

COMPRESSION SPRING
(49913)


6

SCREW PLUG
(49914)


15

SCREW PLUG
(10015)


16

SCREW PLUG
(10395)


18

O-RING
(29476)


20

O-RING
(46683)


21

SCREW PLUG
(11372)


22

O-RING
(10695)
