A4VG085EV2DP000/40MRNC6Z81FD4S7AS00-0 (R902157478)

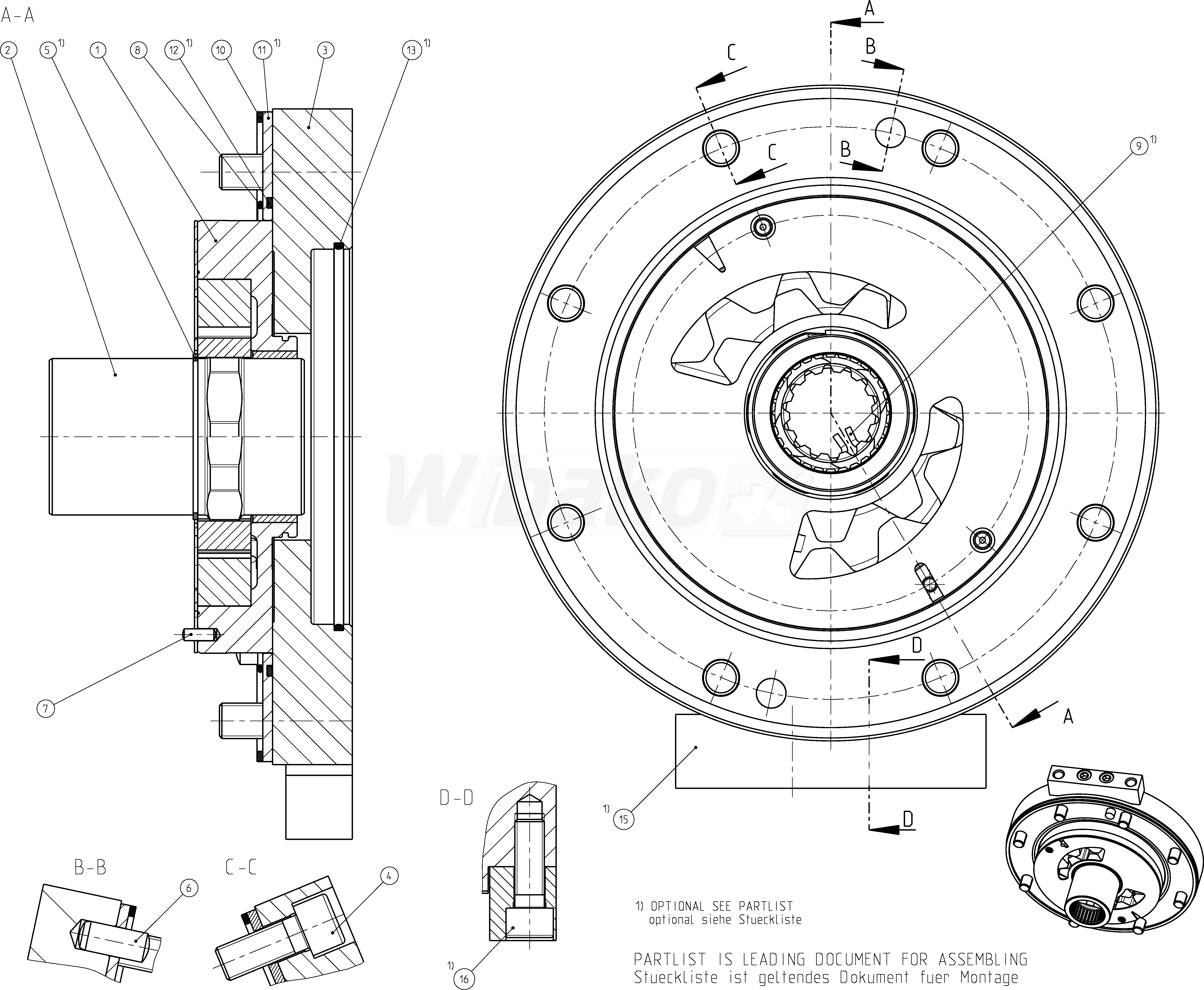

INTERNAL GEAR PUMP (16025)

INTERNAL GEAR PUMP
(16025)


1

HOUSING
(16112)

Group »


2

THROUGH DRIVE SHAFT
(16113)


3

FLANGE
(16114)


4

SOCKET HEAD CAP SCREW
(11553)


6

STRAIGHT PIN
(12074)


7

STRAIGHT PIN


8

O-RING


9

SNAP RING
(13040)


13

O-RING



Return

The above diagrams belong to Rexroth www.boschrexroth.com
