PT-A4VG125DA2D8/32R-NSF02F001PP (R902274672)
Axial piston variable pump A4VG. Geometric displacement 125 cm3. Automatic control, speed related U = 24 V. Pressure cut-off. DA control valve, fixed setting and brake inch valve mounted, control with brake fluid based on mineral oil. Series 3, index 2. Direction of rotation (viewed on drive shaft): clockwise. Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer). Splined shaft ANSI B92.1a for single pump. Mounting flange SAE J744 2+4-hole. SAE working port A and B, top and bottom Suction port S bottom. Integrated boost pump. Without through drive. High pressure relief valve, pilot operated 100 to 420 bar with bypass. Filtration in the boost pump pressure line. Attachment filter with cold start valve and visual contamination indicator. DEUTSCH molded connector, 2-pin without suppressor diode.

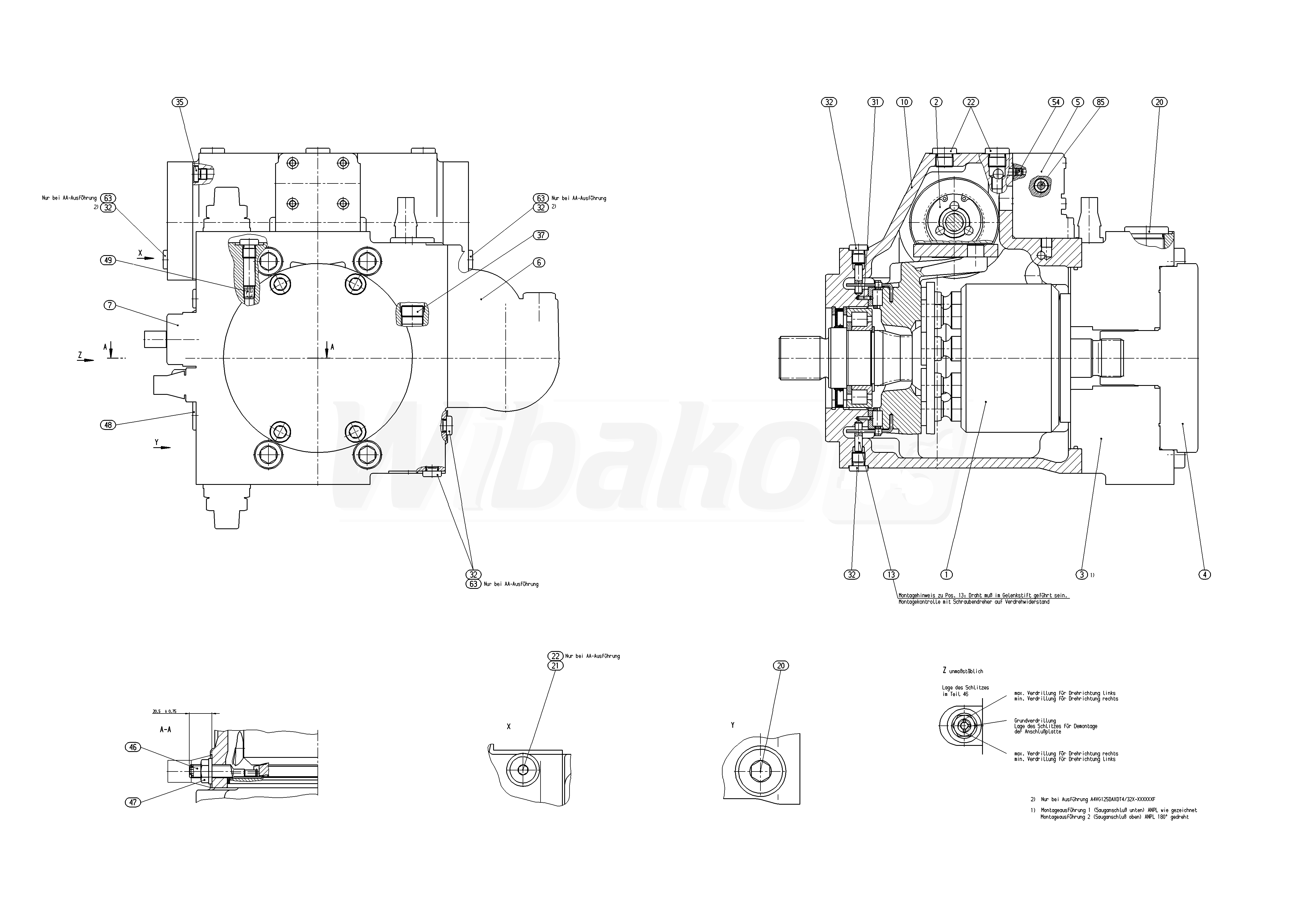

The above diagrams belong to Rexroth www.boschrexroth.com
