PT-A4VG125EP7D1/32L-NAF02K691EP-S (R902276683)

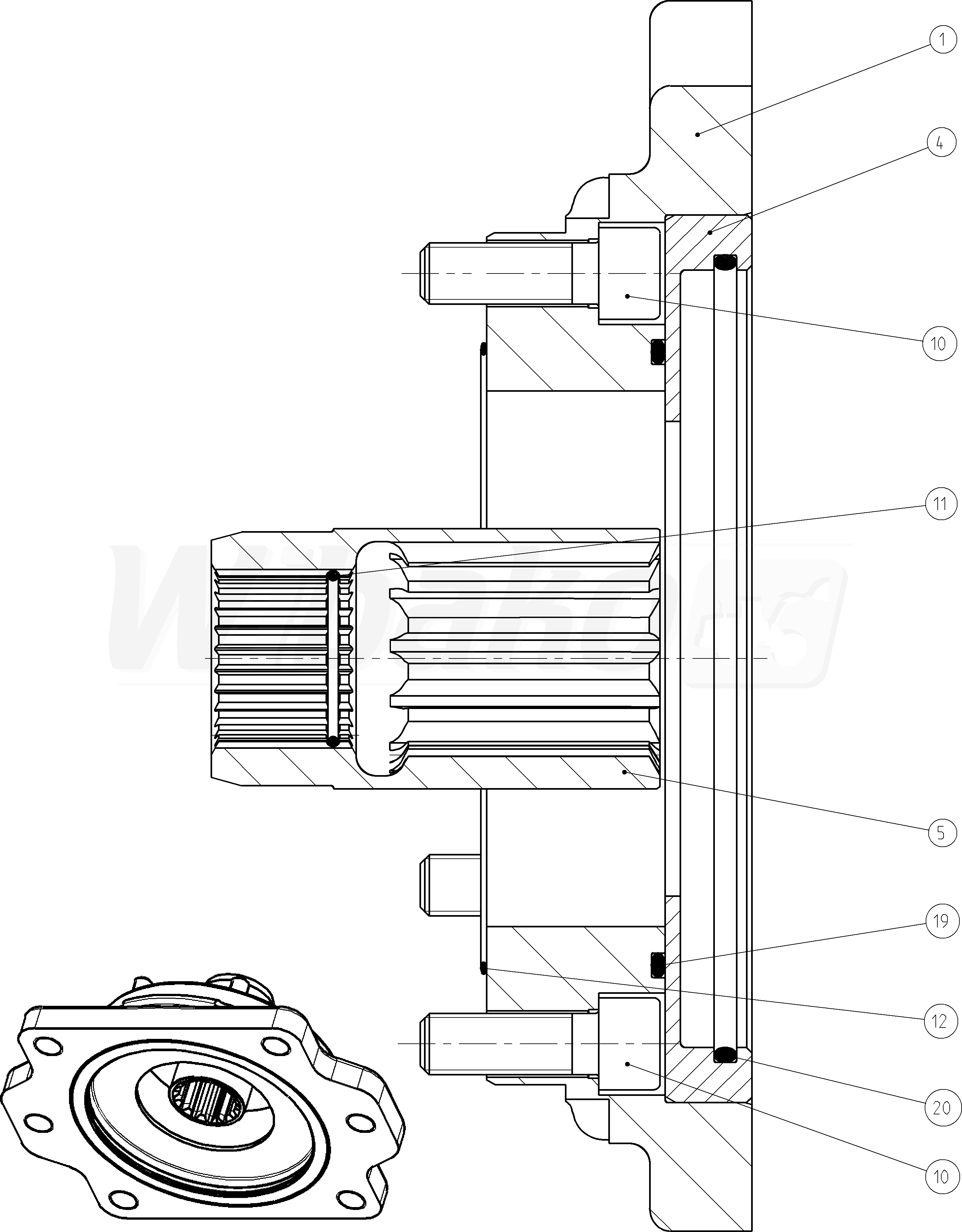

BELL HOUSING (32276)

BELL HOUSING
(32276)


1

INTERMEDIATE FLANGE
(32573)


4

INTERMEDIATE RING
(13398)


5

THROUGH DRIVE COUPLING
(32574)


10

SOCKET HEAD CAP SCREW
(11166)


11

SNAP RING
(13402)


19

BURL SEAL RING
(45173)


20

O-RING
(26346)


98

SEAL KIT
(11160)
