A4VG125HD3DMT2/32L-NAF02K021E-S (R902276707)

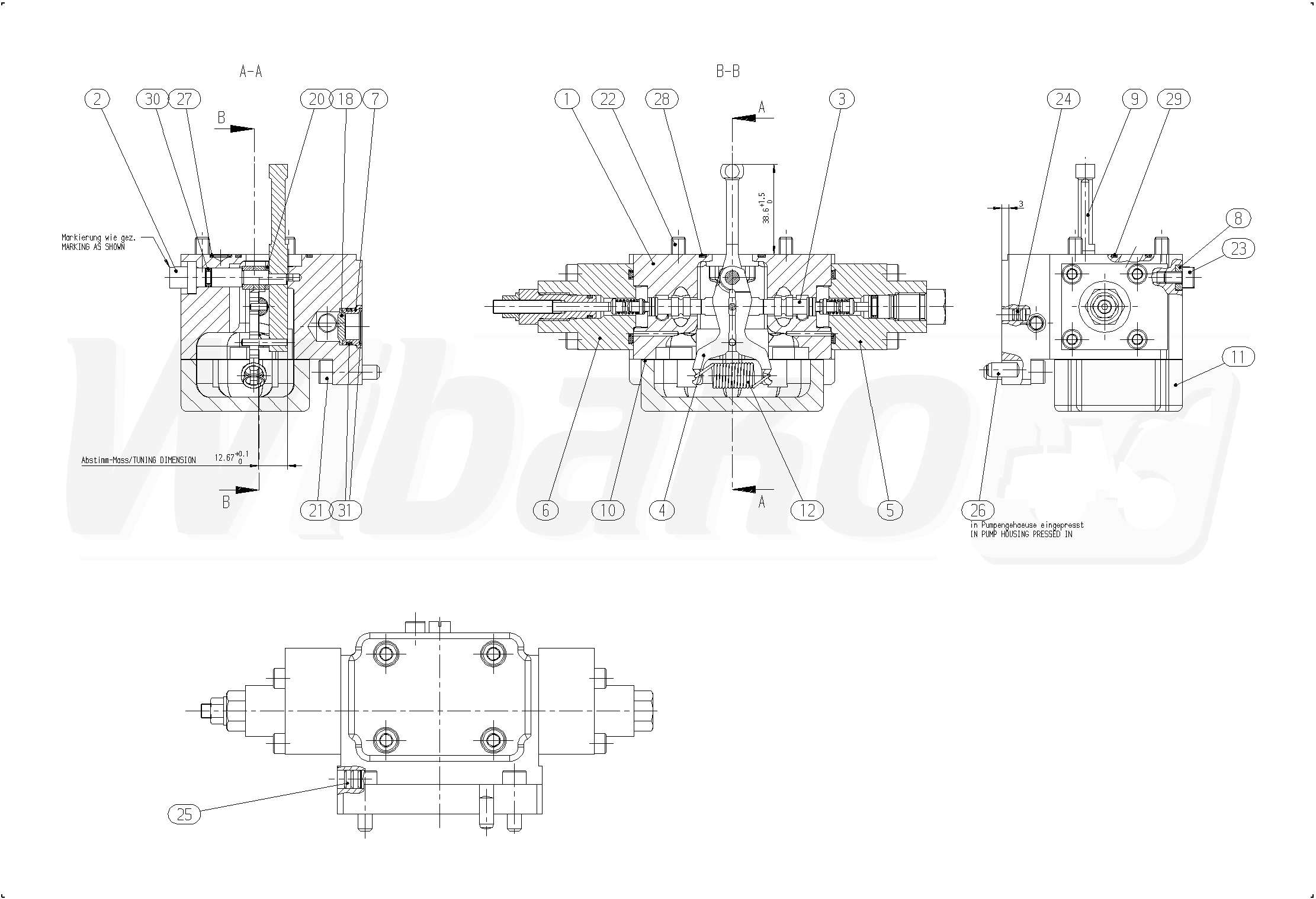

CONTROL MODULE (50681)

CONTROL MODULE
(50681)


1

HOUSING
(19714)


2

ECCENTRIC PIN
(13408)


3

CONTROL PISTON
(48808)


4

LEVER PAIR
(13407)


5

CONTROL MODULE ASSEMBLY
(50682)

Group »


6

CONTROL MODULE ASSEMBLY
(50683)

Group »


7

RING
(13409)


8

WASHER
(13410)


9

FEEDBACK LEVER
(13411)


10

SEAL
(13412)


11

COVER
(13413)


12

EXTENSION SPRING
(19715)


18

FILTER DISC
(13415)


20

WASHER
(13416)


20

WASHER
(13417)


20

WASHER
(13418)


20

WASHER
(13419)


20

WASHER
(13420)


20

WASHER
(13421)


20

WASHER
(13422)


20

WASHER
(13423)


20

WASHER
(13424)


21

SOCKET HEAD CAP SCREW
(10506)


22

SOCKET HEAD CAP SCREW
(12219)


23

SOCKET HEAD CAP SCREW
(13425)


24

SEALING PLUG
(13426)


25

SEALING PLUG
(13427)


26

STRAIGHT PIN
(12694)


27

O-RING
(10370)


28

O-RING
(10508)


29

O-RING
(13428)


30

O-RING
(13429)


31

O-RING
(10450)


98

SEAL KIT
(11169)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
