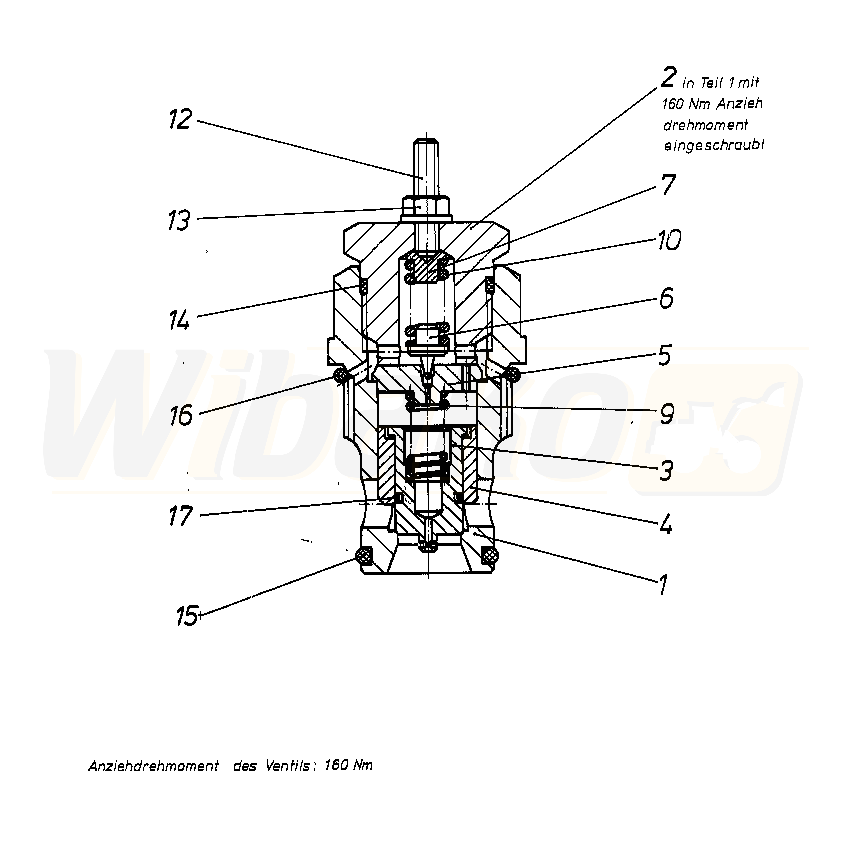

A4VG125EP11/30L-PZC10F001S*G* (R909424167)
PRESSURE RELIEF VALVE (53216)

PRESSURE RELIEF VALVE
(53216)


1

VALVE BUSHING
(53885)


2

SPRING SLEEV
(53886)


3

PISTON
(53887)


4

RING PISTON
(53888)


5

VALVE PLATE
(53889)


6

VALVE CONE
(16376)


7

SPRING DISK
(11809)


9

COMPRESSION SPRING
(53890)


10

COMPRESSION SPRING
(16378)


12

SETSCREW
(10770)


13

SEALING NUT
(10369)


14

O-RING
(10534)


15

O-RING
(53891)


16

O-RING
(11174)


17

STEEL SEALING RING
(53892)
