A4VG125EP11/30L-PZC10F001S*G* (R909424167)

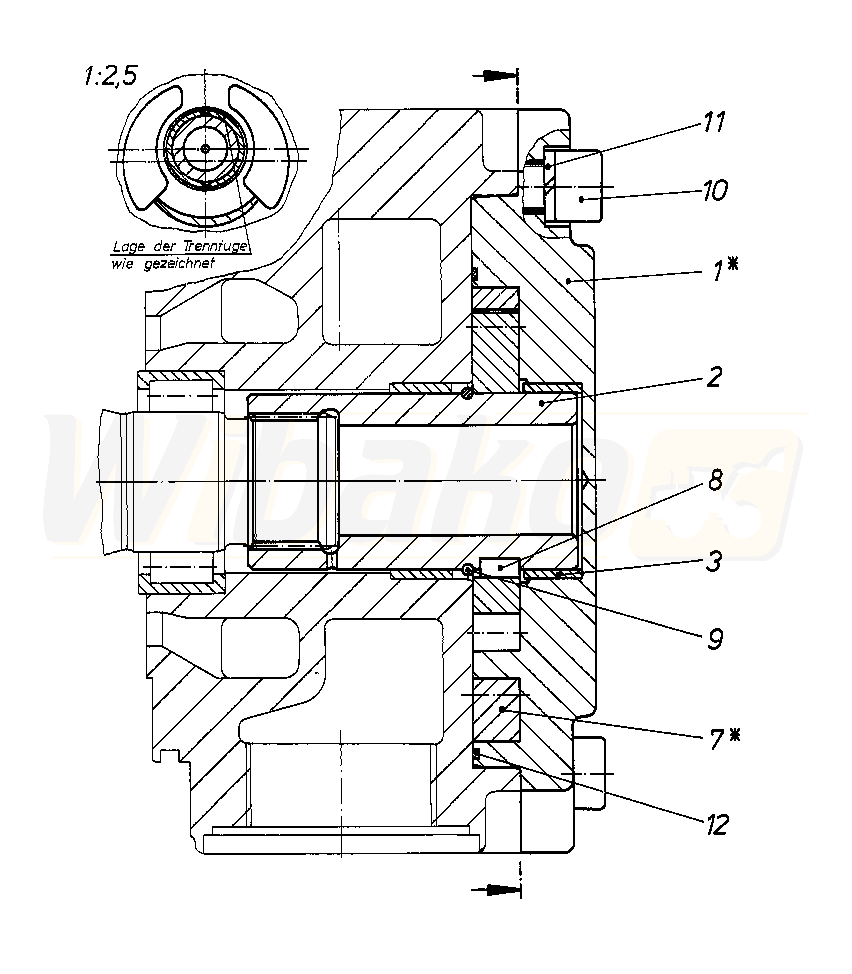

INTERNAL GEAR PUMP (53218)

INTERNAL GEAR PUMP
(53218)


1

PUMP COVER
(53893)


2

PLUG-IN SHAFT
(53894)


3

BUSHING
(53883)


7

WHEEL SET
(53895)


8

PARALLEL KEY
(53896)


9

SNAP RING
(53897)


10

SOCKET HEAD CAP SCREW
(14740)


11

SPRING LOCK WASHER
(10165)


12

O-RING
(53898)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
