AA4VG125HD/3-424486**G* (R909424486)

1

ROTARY GROUP
(53220)

Group »


2

CONTROL
(53214)

Group »


3

CONNECTION PLATE
(53223)

Group »


4

INTERNAL GEAR PUMP
(53225)

Group »


6

CONTROL MODULE
(53226)

Group »


8

HOUSING
(53899)


9

HOUSING COVER
(53860)


10

SCREW PLUG
(12270)


11

PIVOT PIN
(29532)


12

COMPRESSION SPRING
(29533)


13

SETSCREW
(26369)


14

POITIONING PIN
(10183)


15

DRAIN ORIFICE
(53900)


16

SEAL
(53861)


17

SOCKET HEAD CAP SCREW
(11185)


18

SLOTTED SPRING PIN
(12971)


19

SEAL RING
(12274)


20

SCREW PLUG
(19251)


21

SCREW PLUG
(11371)


22

LOCKING PIECE
(53232)

Group »


24

DOUBLE BREAK-OFF PLUG
(19009)


26

SEALING NUT
(12984)


29

NOZZLE
(10073)


36

SCREW PLUG
(53862)


42

O-RING
(10450)


43

SCREW PLUG
(20356)


48

SOCKET HEAD CAP SCREW
(10430)



Return

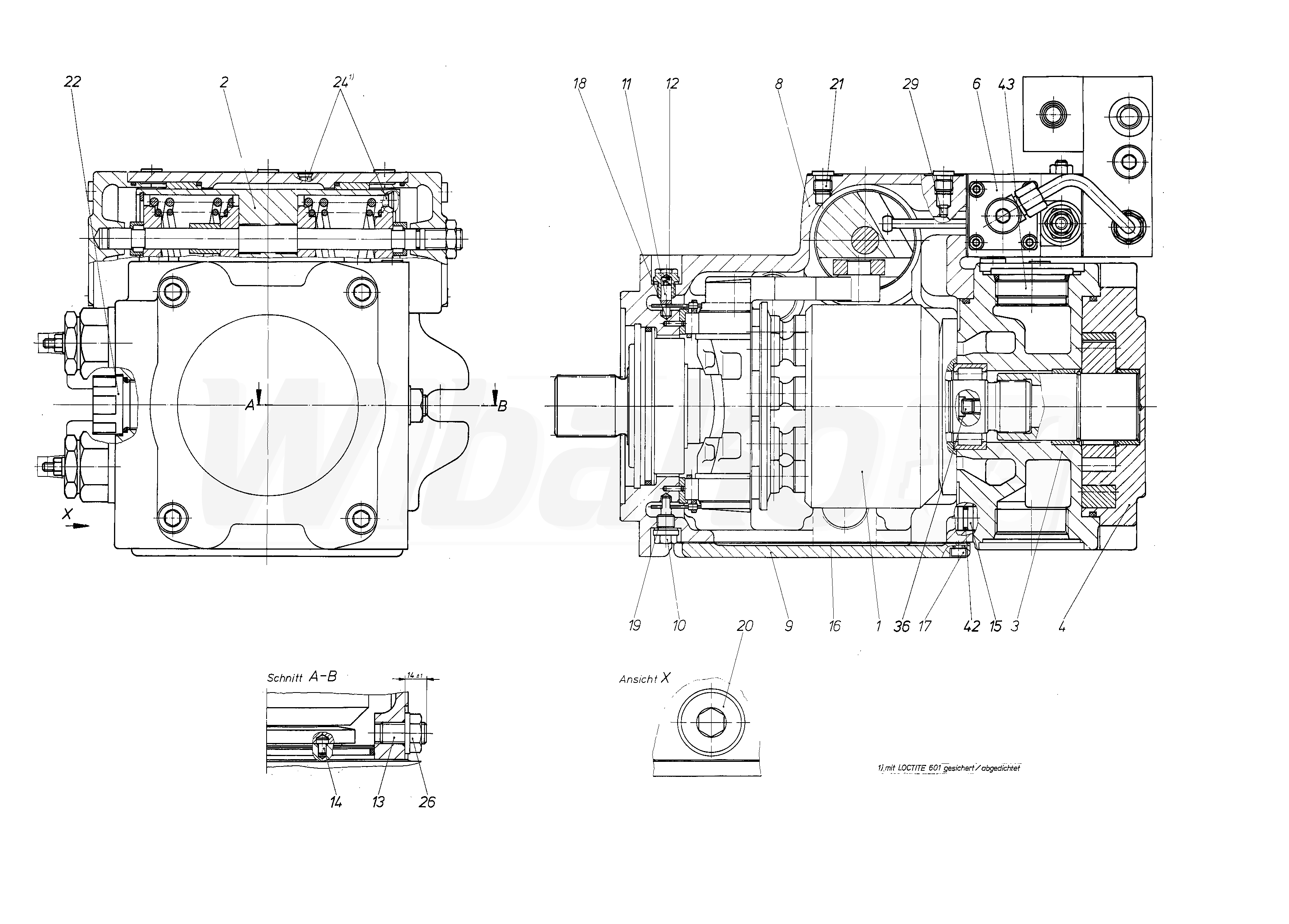

The above diagrams belong to Rexroth www.boschrexroth.com
