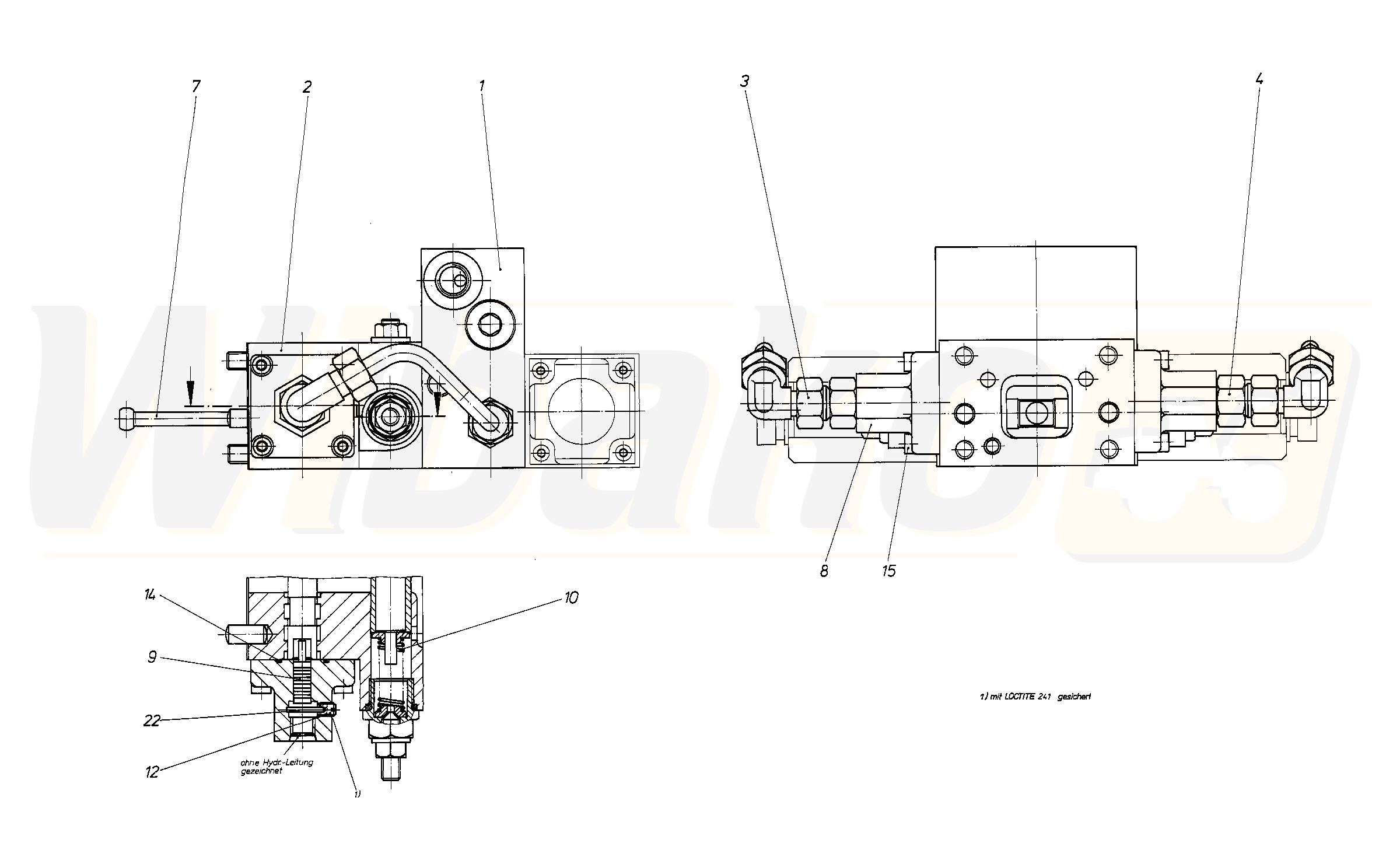

AA4VG125HD/3-424487*G* (R909424487)
CONTROL MODULE (53235)

CONTROL MODULE
(53235)


1

CONTROL MODULE
(53236)

Group »


2

CONTROL MODULE
(53229)

Group »


3

HYDRAULIC LINE
(53230)

Group »


4

HYDRAULIC LINE
(53231)

Group »


7

FEEDBACK LEVER
(53923)


8

HOUSING
(53924)


9

PISTON
(53925)


10

COMPRESSION SPRING
(53926)


12

SETSCREW
(16881)


14

O-RING
(12696)


15

SOCKET HEAD CAP SCREW
(23319)


22

STRAIGHT PIN
(53927)



Return

The above diagrams belong to Rexroth www.boschrexroth.com
