AA4VG125HD/3-424592*G* (R909424592)

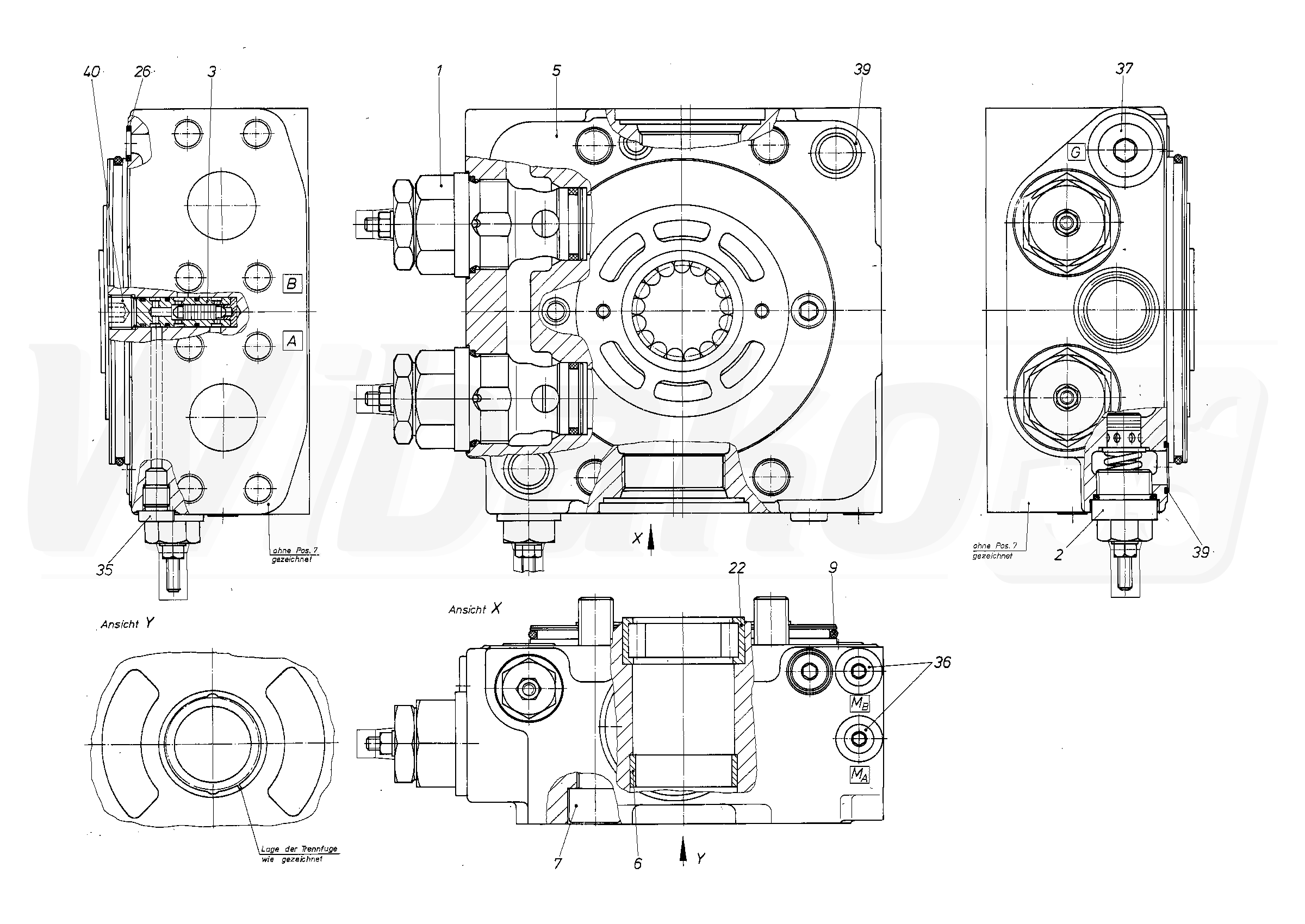

CONNECTION PLATE (53238)

CONNECTION PLATE
(53238)


1

PRESSURE RELIEF VALVE
(53216)

Group »


2

PRESSURE RELIEF VALVE
(53217)

Group »


3

SHUTTLE VALVE
(23534)

Group »


5

CONNECTION PLATE
(53917)


6

BUSHING
(53883)


7

SOCKET HEAD CAP SCREW
(11052)


9

O-RING
(12631)


22

CYL. ROLLER BEARING
(13354)


26

QUAD RING
(11798)


35

SCREW PLUG
(10190)


36

SCREW PLUG
(11371)


37

SCREW PLUG
(11369)


39

O-RING
(27724)


40

SETSCREW
(53884)



Return
