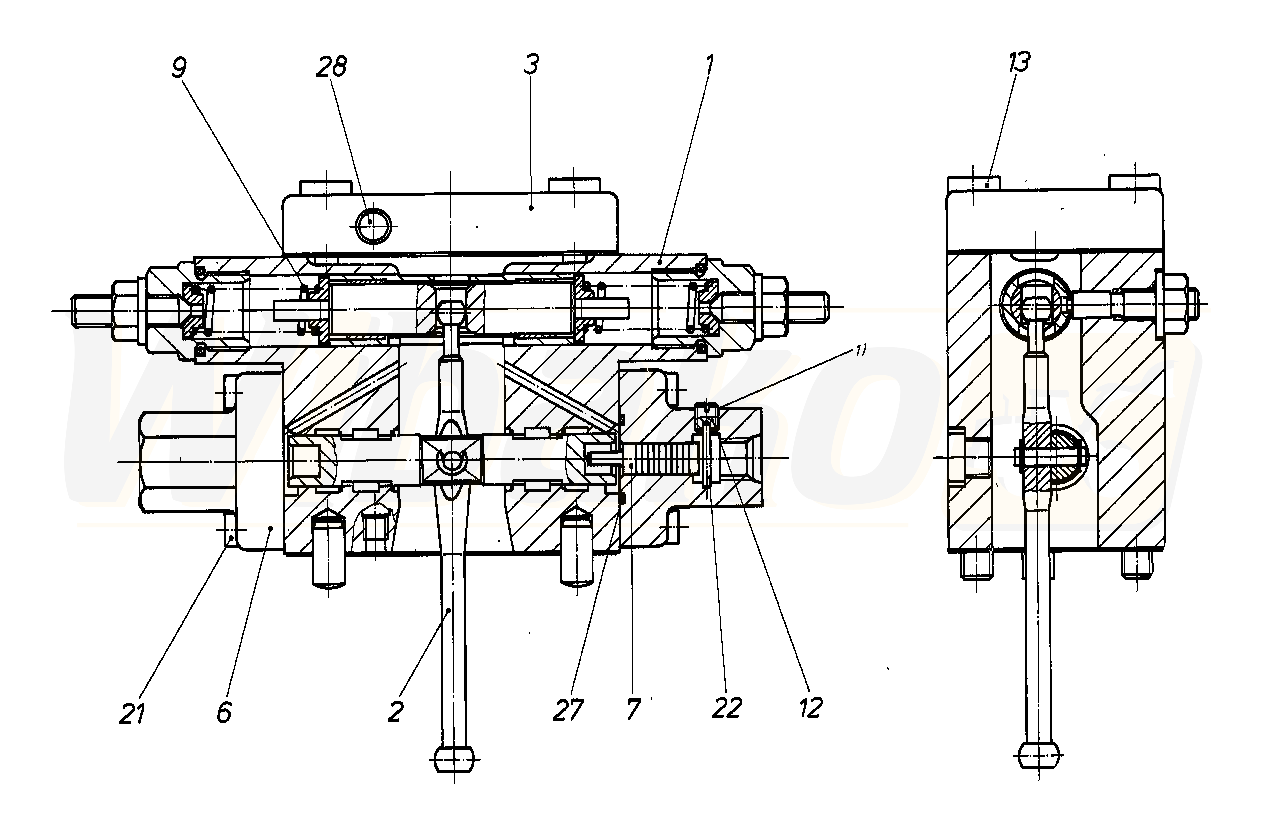

AA4VG125HD/3-424592*G* (R909424592)
CONTROL MODULE (53239)

CONTROL MODULE
(53239)


1

CONTROL MODULE
(53229)

Group »


2

FEEDBACK LEVER
(53923)


3

COVER
(53952)


6

HOUSING
(53924)


7

PISTON
(53925)


9

COMPRESSION SPRING
(53926)


12

SETSCREW
(16881)


13

SOCKET HEAD CAP SCREW
(53953)


21

SOCKET HEAD CAP SCREW
(23319)


22

STRAIGHT PIN
(53927)


27

O-RING
(12696)


28

DOUBLE BREAK-OFF PLUG
(19009)
