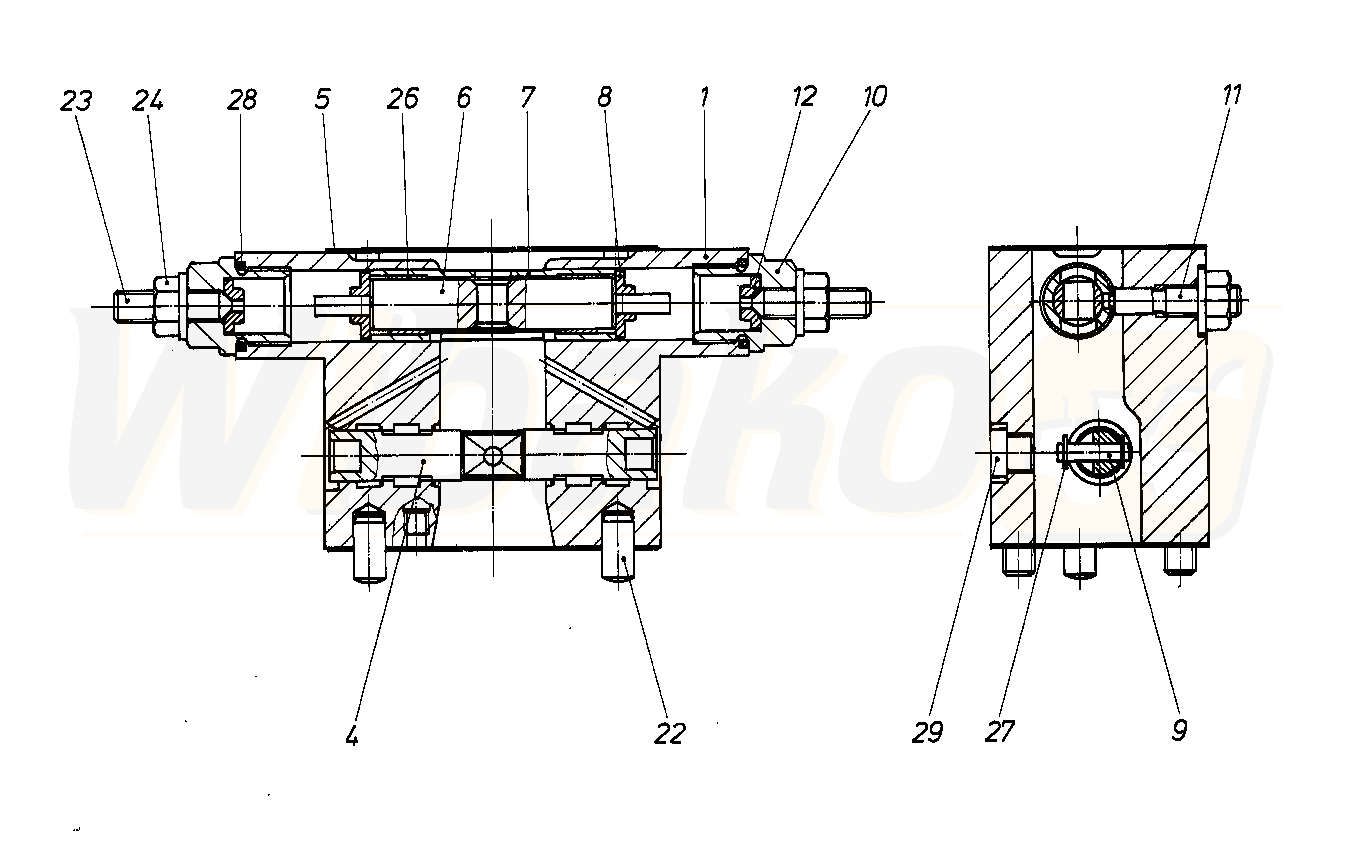

AA4VG125HD1/30L-427505*G* (R909427505)
CONTROL MODULE (53229)

CONTROL MODULE
(53229)


1

HOUSING
(53934)


4

CONTROL PISTON
(53935)


5

SEAL
(53936)


6

PISTON
(53937)


7

BUSHING
(53938)


8

SPRING DISK
(53939)


9

BOLT
(53940)


10

SCREW PLUG
(53941)


11

ECCENTRIC PIN
(53942)


12

SPRING DISK
(53943)


22

STRAIGHT PIN
(14926)


23

SETSCREW
(53944)


24

SEALING NUT
(10215)


26

DU-BUSHING
(53945)


27

LOCKING WASHER
(53946)


28

O-RING
(10771)


29

SCREW PLUG
(10220)
