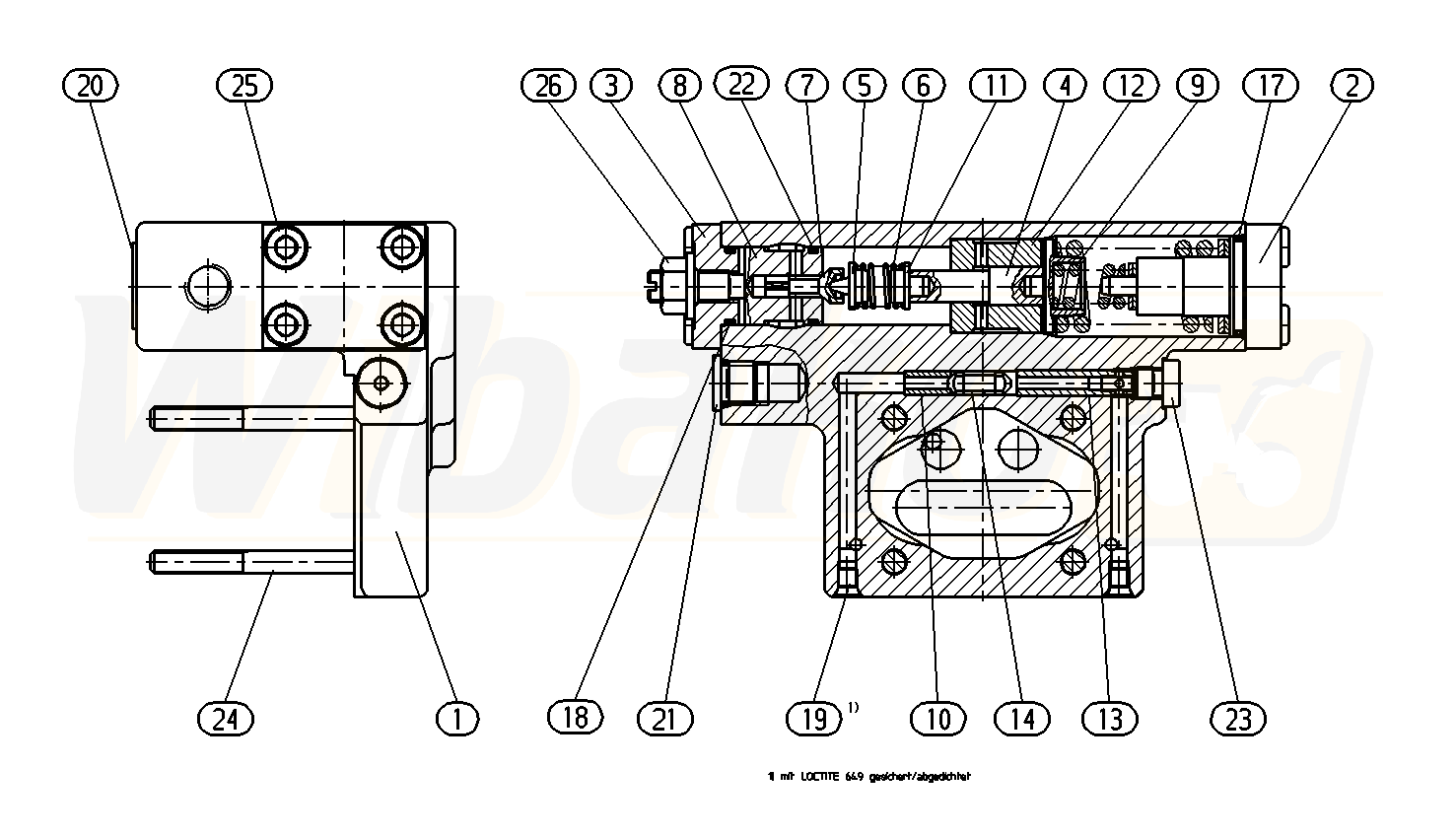

AA4VG125HDD1/31R-PSF10F001D (R909433908)
SENSING DEVICE (53259)

SENSING DEVICE
(53259)


1

VALVE HOUSING
(54001)


2

SPRING COVER
(54002)


3

COVER
(54003)


4

DIFFERENTIAL PISTON
(54004)


5

SPRING DISK
(54005)


6

COMPRESSION SPRING
(54006)


7

VALVE SPOOL
(54007)


8

VALVE SEAT
(53992)


9

SPRING DISK
(54008)


10

VALVE BUSHING
(54009)


11

SPRING DISK
(54010)


12

VALVE BUSHING
(54011)


13

VALVE BUSHING
(54012)


14

VALVE SPOOL
(54013)


17

O-RING
(31850)


18

O-RING
(10247)


19

DOUBLE BREAK-OFF PLUG
(19008)


20

SCREW PLUG
(11372)


21

SCREW PLUG
(11371)


22

O-RING
(10247)


23

SCREW PLUG
(10330)


24

SOCKET HEAD CAP SCREW
(12219)


25

SOCKET HEAD CAP SCREW
(10975)


26

SEALING NUT
(10215)
